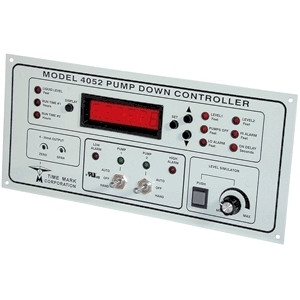

  • TimeMark 4052 Pump Down Controller

    TimeMark 4052

    TimeMark

    The TimeMark 4052 is a duplex pump-down controller for a 120V AC +-10%, 50/60 Hz supply. It empties a well or sump with two alternating pumps, with high and low alarms. Sensing: 4-20 mA transducer,...

    $1,100.00
    $1,100.00
  • TimeMark 4062 Pump Up Controller

    TimeMark 4062

    TimeMark

    The TimeMark 4062 is a duplex pump-up controller for a 120V AC +-10%, 50/60 Hz supply. It fills a tank with two alternating pumps, with high and low alarms. Sensing: 4-20 mA transducer, 2- or 3-wire...

    $1,100.00
    $1,100.00
  • TimeMark 4062-15PSI Pump Up Controller

    TimeMark 4062-15PSI

    TimeMark

    The TimeMark 4062-15PSI is a duplex pump-up controller for a 120V AC +-10%, 50/60 Hz supply. It fills a tank with two alternating pumps, with high and low alarms. Sensing: 4-20 mA transducer, 2- or...

    $1,166.67
    $1,166.67

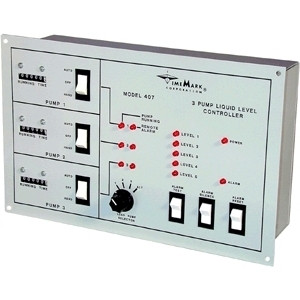

  • TimeMark 407

    TimeMark 407

    TimeMark

    The TimeMark 407 is a triplex pump controller for a 115V AC (105-130V AC), 60 Hz supply. It runs the pumps down or up (set by N.O. or N.C. level switches), alternating them, with alarms. Sensing:...

    $1,516.67
    $1,516.67
  • TimeMark 408-115

    TimeMark 408-115

    TimeMark

    The TimeMark 408-115 is a bubbler liquid level sensor for a 115V AC (105-130V AC), 47-65 Hz supply. It reads the depth from the air pressure in a bubbler tube (0-34.6 ft of water) and switches 5...

    $1,112.50
    $1,112.50
  • TimeMark 408-24

    TimeMark 408-24

    TimeMark

    The TimeMark 408-24 is a bubbler liquid level sensor for a 24V AC (20-28V AC), 47-65 Hz supply. It reads the depth from the air pressure in a bubbler tube (0-34.6 ft of water) and switches 5...

    $1,112.50
    $1,112.50
  • TimeMark 4082

    TimeMark 4082

    TimeMark

    The TimeMark 4082 is a liquid level controller for a 120V AC +-10%, 50/60 Hz supply. It displays the level and switches 8 set-point relays for pumps and alarms. Sensing: 4-20 mA transducer (TimeMark...

    $2,208.33
    $2,208.33
  • TimeMark 409-120

    TimeMark 409-120

    TimeMark

    The TimeMark 409-120 is a conductive liquid level control for a 120V AC (90-140V AC), 50-400 Hz supply. The relay drops out when the liquid reaches the probe. Sensing: conductive probe (one level...

    Call for Price
  • TimeMark 4092-120 Seal Failure Detector

    TimeMark 4092-120

    TimeMark

    The TimeMark 4092-120 is a dual seal failure detector for a 120V AC, 50/60 Hz supply. It watches the seal cavities of two submersible pumps and alarms on a leak. Sensing: seal leak probes in each...

    $152.50
    $152.50
  • TimeMark 4092-240 Seal Failure Detector

    TimeMark 4092-240

    TimeMark

    The TimeMark 4092-240 is a dual seal failure detector for a 240V AC, 50/60 Hz supply. It watches the seal cavities of two submersible pumps and alarms on a leak. Sensing: seal leak probes in each...

    $152.50
    $152.50
  • TimeMark 4092I-120 Seal Failure Detector - Isolated

    TimeMark 4092I-120

    TimeMark

    The TimeMark 4092I-120 is an isolated dual seal failure detector for a 120V AC, 50/60 Hz supply. It watches the seal cavities of two submersible pumps on electrically isolated probe inputs and alarms...

    $157.50
    $157.50
  • TimeMark 4092I-240 Seal Failure Detector - Isolated

    TimeMark 4092I-240

    TimeMark

    The TimeMark 4092I-240 is an isolated dual seal failure detector for a 240V AC, 50/60 Hz supply. It watches the seal cavities of two submersible pumps on electrically isolated probe inputs and alarms...

    $157.50
    $157.50
  • TimeMark 4093-120

    TimeMark 4093-120

    TimeMark

    The TimeMark 4093-120 is a conductive pump control for a 120V AC, 50/60 Hz supply. It runs the pump between a high and a low probe, pump up or pump down (switch selectable). Sensing: conductive...

    $171.67
    $171.67
  • TimeMark 4093-240

    TimeMark 4093-240

    TimeMark

    The TimeMark 4093-240 is a conductive pump control for a 240V AC, 50/60 Hz supply. It runs the pump between a high and a low probe, pump up or pump down (switch selectable). Sensing: conductive...

    $171.67
    $171.67
  • TimeMark 409D-120

    TimeMark 409D-120

    TimeMark

    The TimeMark 409D-120 is a conductive liquid level control for a 120V AC (90-140V AC), 50-400 Hz supply. The relay drops out when the liquid reaches the probe. Sensing: conductive probe (one level...

    $96.25
    $96.25
  • TimeMark 409D-230

    TimeMark 409D-230

    TimeMark

    The TimeMark 409D-230 is a conductive liquid level control for a 230V AC (200-250V AC), 50-400 Hz supply. The relay drops out when the liquid reaches the probe. Sensing: conductive probe (one level...

    $96.25
    $96.25
  • TimeMark 409D-24

    TimeMark 409D-24

    TimeMark

    The TimeMark 409D-24 is a conductive liquid level control for a 24V AC (20-30V AC), 50-400 Hz supply. The relay drops out when the liquid reaches the probe. Sensing: conductive probe (one level plus...

    $96.25
    $96.25
  • TimeMark 410-120

    TimeMark 410-120

    TimeMark

    The TimeMark 410-120 is an auto-charged capacitor trip device for a 120V AC (108-132V AC) supply. Output: 380 V DC minimum. Stored energy: 28.7 W-s. Charge time: 3 cycles to reach 90% of full charge...

    Call for Price
  • TimeMark 410-230

    TimeMark 410-230

    TimeMark

    The TimeMark 410-230 is an auto-charged capacitor trip device for a 208/230V AC (216-264V AC) supply. Output: 380 V DC minimum. Stored energy: 28.7 W-s. Charge time: 3 cycles to reach 90% of full...

    Call for Price
  • TimeMark 410D-40J

    TimeMark 410D-40J

    TimeMark

    The TimeMark 410D-40J is an auto-charged capacitor trip device for a 85 - 277V AC, 47 - 440 Hz; 120 - 430V DC supply. Output: 380 V DC minimum. Stored energy: 40.4 J at 380 V. Hold-up: 48 h. Backup...

    $541.67
    $541.67
  • TimeMark 410D-80J

    TimeMark 410D-80J

    TimeMark

    The TimeMark 410D-80J is an auto-charged capacitor trip device for a 85 - 277V AC, 47 - 440 Hz; 120 - 430V DC supply. Output: 380 V DC minimum. Stored energy: 80.8 J at 380 V. Hold-up: 48 h. Backup...

    $541.67
    $541.67
  • TimeMark 412 Special Control

    TimeMark 412

    TimeMark

    The TimeMark 412 is an automatic reverse controller for a 120V AC +-10% 50/60 Hz supply. It detects a jammed sewage grinder by its current and runs up to 5 forward / reverse cycles, then alarms and...

    $447.50
    $447.50
  • TimeMark 421 Motor Protection Monitor

    TimeMark 421

    TimeMark

    The TimeMark 421 is an over/under motor load monitor for a 100-130V AC or 200-250V AC, 50/60 Hz supply. It trips on motor overload and underload, measured as true motor power (volts x current x power...

    $318.33
    $318.33
  • TimeMark 422 Submersible Pump Controller

    TimeMark 422

    TimeMark

    The TimeMark 422 is a submersible pump controller for a 100-130V AC or 200-250V AC, 50/60 Hz supply. It trips on motor overload or underload, sensed as true motor power (V x A x PF). Sensing: motor...

    $318.33
    $318.33
  • TimeMark 441-120 Alternating Sequencing Relay

    TimeMark 441-120

    TimeMark

    The TimeMark 441-120 is a multi-stage alternator for a 120 V AC, 50/60 Hz supply. Its float or pressure switches bring up to four pumps on one after the other and drop them in the order they came on...

    $275.00
    $275.00
  • TimeMark 441-240 Alternating Sequencing Relay

    TimeMark 441-240

    TimeMark

    The TimeMark 441-240 is a multi-stage alternator for a 240 V AC, 50/60 Hz supply. Its float or pressure switches bring up to four pumps on one after the other and drop them in the order they came on...

    $275.00
    $275.00
  • TimeMark 442-120 Alternating Sequencing Relay

    TimeMark 442-120

    TimeMark

    The TimeMark 442-120 is a multi-stage alternator for a 120 V AC, 50/60 Hz supply. Its float or pressure switches bring up to four pumps on one after the other, and it drops them all together when the...

    $295.83
    $295.83
  • TimeMark 442-240 Alternating Sequencing Relay

    TimeMark 442-240

    TimeMark

    The TimeMark 442-240 is a multi-stage alternator for a 240 V AC, 50/60 Hz supply. Its float or pressure switches bring up to four pumps on one after the other, and it drops them all together when the...

    $295.83
    $295.83
  • TimeMark 448 Output Relay Board

    TimeMark 448

    TimeMark

    The TimeMark 448 is an output relay board for a 105-130V AC, 47-65 Hz supply. It gives the TimeMark 404 / 408 level sensors relay contacts. Sensing: solid-state outputs of a TimeMark 404 or 408, or...

    $295.83
    $295.83
  • TimeMark 451 Pressure Transducer

    TimeMark 451

    TimeMark

    The TimeMark 451 is a bubbler pressure transducer for a 24V DC supply. It turns 0-15 psi (0-34.6 ft of water) into a 4-20 mA signal for a level controller. Sensor: bubbler: air pressure through 3/16...

    $204.17
    $204.17
  • TimeMark 460D Switch-to-Loop Converter

    TimeMark 460D

    TimeMark

    The TimeMark 460D is a switch-to-loop converter for a 120V AC +-10%, 50/60 Hz supply. It turns up to six float switches into an adjustable 4-20 mA signal for a level controller. Sensing: float...

    $236.67
    $236.67
  • TimeMark 51X016 Relay Accessory

    TimeMark 51X016

    TimeMark

    The TimeMark 51X016 is an 11-pin octal relay socket. For use with: TimeMark 11-pin socket-mounted monitors, timers and controls. Rated current: 10 A. Rated voltage: 300 V AC. Wire: two #12 AWG (#6-32...

    $12.08
    $12.08
