| Manufacturer | TimeMark |
| Manufacturer Product Number | 422 |
| Description | Liquid Level Control Relay; Panel (in an enclosure) |
| Datasheet | Download Datasheet |

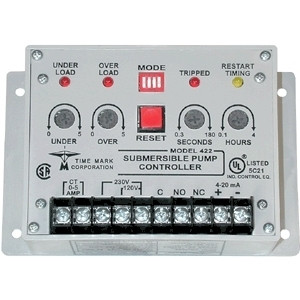

The TimeMark 422 is a submersible pump controller for a 100-130V AC or 200-250V AC, 50/60 Hz supply. It trips on motor overload or underload, sensed as true motor power (V x A x PF).
Sensing: motor voltage and current (direct to 3.5 A; TimeMark 276A / 276B CTs; 276C for 3-phase). Input: current 0-5 A (CT secondary). Delay: off or 0.3...180 s (trip delay). Reset delay: off or 0.1...4 h (restart delay). Reset: power cycle, reset button or restart timer (DIP selected).
Output: 1C SPDT, 10 A at 240 V AC resistive. Signal output: 4-20 mA proportional to motor power (chart recorder). Mounting: panel (in an enclosure). Indicators: red LED: tripped (overload / underload); yellow LED: restart timing. Power: 0.5 VA max. It operates from -29 to +55 °C. Approvals: UL Listed (U.S. and Canada), CSA Certified.
| Category | |
| Manufacturer | TimeMark |
| Control Function | Submersible pump controller: it trips on motor overload or underload, sensed as true motor power (V x A x PF) |
| Level Sensing | Motor voltage and current (direct to 3.5 A; TimeMark 276A / 276B CTs; 276C for 3-phase) |
| Input Signal | Current 0-5 A (CT secondary) |
| Input Voltage | 100-130V AC or 200-250V AC, 50/60 Hz |
| Pickup Delay | Off or 0.3...180 s (trip delay) |
| Reset Delay | Off or 0.1...4 h (restart delay) |
| Reset Method | Power cycle, reset button or restart timer (DIP selected) |
| Status Indicator | Red LED: tripped (overload / underload); yellow LED: restart timing |
| Contact Configuration | 1C SPDT |
| Output Rating | 10 A at 240 V AC resistive |
| Signal Output | 4-20 mA proportional to motor power (chart recorder) |
| Mounting Type | Panel (in an enclosure) |
| Operating Temperature (Storage) (°C) | -29...+55 |
| Approvals | UL Listed (U.S. and Canada), CSA Certified |
