Product Description
|
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Input Voltage | 240VAC |
| Power consumption | 1.5W |
| Probe voltage | 9VDC |
| Sensitivity | 10K ohm - 25K ohm |
| Response time | 15ms |
| Reset time | 15ms |
| Output contacts | 2 SPST N.O. |
| Contact rating | 5A @ 250VAC resistive |
| Expected relay life | Mechanical: 50 million operations Electrical: 100,000 oper. at rated load |
| Operating temperature | -13º to +140º F |
| Humidity tolerance | 0 to 97% w/o condensation |
| Enclosure material | ABS plastic |
| Mounting | 8-pin socket |
| Weight | 6 oz. |
| Series Features |

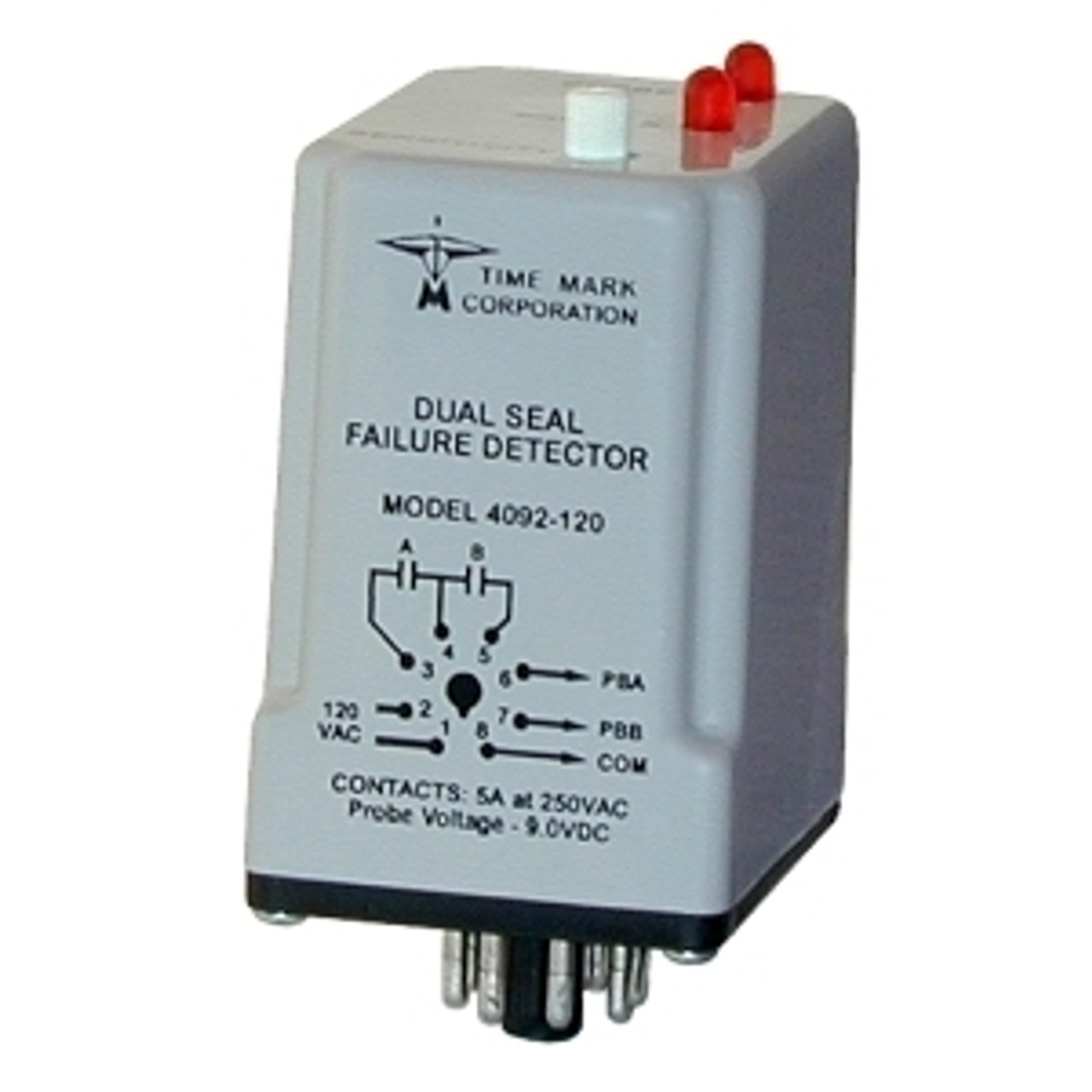

| MODEL 4092 Dual Seal Failure Detector |
| Series Description: The Model 4092 Dual Seal Failure Detector is designed specifically for monitoring the shaft seals of two submersible pumps. The probes are installed in the seal cavities of each of the pumps. When a seal begins to leak, contaminating fluid enters the seal cavity, lowering the resistance between the probe and the common connection. If the resistance drops below the sensitivity set-point, the corresponding relay and the LED indicator are activated. The Model 4092 will automatically reset when the fault condition is corrected. The sensitivity is field adjustable. |
|
