To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | TimeMark |
| Manufacturer Product Number | 407 |
| Description | Liquid Level Control Relay; 115V AC (105-130V AC), 60 Hz; Panel (in an enclosure) |
| Datasheet | Download Datasheet |

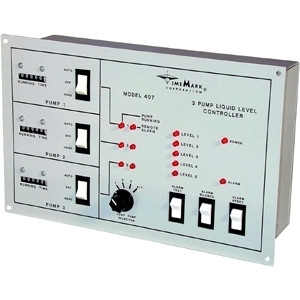

The TimeMark 407 is a triplex pump controller for a 115V AC (105-130V AC), 60 Hz supply. It runs the pumps down or up (set by N.O. or N.C. level switches), alternating them, with alarms.
Sensing: float or pressure switch contacts (12 V DC, 1 mA), or a TimeMark 408 level sensor. Set points: 5 (LOW, LEAD, LAG, LAG-LAG, HIGH). Pumps: 3, alternating or fixed lead. Controls: hand-off-auto switch per pump; lead pump selector; alarm test / silence / reset. Display: three pump run-time meters (99,999.9 h).
Output: 6 x SPST (pumps, alarm light, alarm bell, power fail), 10 A at 240 V AC resistive. Alarms: high level alarm bell and light; power-fail contact; remote pump alarms. Mounting: panel (in an enclosure). Indicators: pump running, remote alarm, level switch, alarm and power LEDs. Power: 10 W max. It operates from -29 to +60 °C.
| Category | |
| Manufacturer | TimeMark |
| Control Function | Triplex pump control: it runs the pumps down or up (set by N.O. or N.C. level switches), alternating them, with alarms |
| Function Selection | Hand-off-auto switch per pump; lead pump selector; alarm test / silence / reset |
| Level Sensing | Float or pressure switch contacts (12 V DC, 1 mA), or a TimeMark 408 level sensor |
| Number of Set Points | 5 (LOW, LEAD, LAG, LAG-LAG, HIGH) |
| Number of Pumps | 3, alternating or fixed lead |
| Input Voltage | 115V AC (105-130V AC), 60 Hz |
| Status Indicator | Pump running, remote alarm, level switch, alarm and power LEDs |
| Display | Three pump run-time meters (99,999.9 h) |
| Contact Configuration | 6 x SPST (pumps, alarm light, alarm bell, power fail) |
| Output Rating | 10 A at 240 V AC resistive |
| Alarm Outputs | High level alarm bell and light; power-fail contact; remote pump alarms |
| Mounting Type | Panel (in an enclosure) |
| Operating Temperature (Storage) (°C) | -29...+60 |
| Mechanical Life | 10,000,000 (100,000) |
