| Specifications |
| Product Attribute | Attribute Value |
| Input Voltage | 20-30VAC |
| Power consumption | 2.5W |
| Transient Protection | 2500VRMS for 10ms |
| Probe voltage (open circuit) | 15VRMS |
| Probe current | 5mA maximum |
| Sensitivity adjust | 1K ohms-100K ohms |
| Contacts | SPDT |
| Contact Rating | 10A @ 240VAC resistive |
| Expected Relay Life | Mech: 10,000,000 operations Elec: 100,000 at rated load |
| Response Time | 2 seconds |
| Reset Time | <1 second |
| Reset Method | Automatic |
| Time delay accuracy | ±5% |
| Operating Temp | -13º to +140º F |
| Humidity Tolerance | 0-97% w/o condensation |
| Case Material | ABS plastic |
| Series Features |

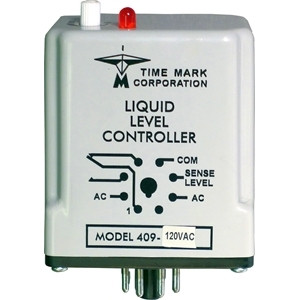

| MODEL 409 Liquid Level Controller |
| Series Description: The Model 409 is a compact, socket-mount device for level control of conductive liquids. The internal relay is energized when operating power is applied. When the liquid level reaches the probe, the relay de-energizes. When the level drops below the probe, the relay will reset. A fixed, two-second time delay prevents oscillation due to wave action. Probe cables may be shielded or unshielded. If the liquid container is made of a non-conductive material, a common electrode is required. Other features include an LED indicator to show the output relay status and an adjustable sensitivity setting. Requires a standard 8-pin octal socket. (socket number 51X00120-01) |
|
