Product Description
|
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Input Voltage | 120VAC |
| Pwr Consumption | 8W max. |
| Signal Input | 4-20mA (optional 0-5V), 2 or 3 wire |
| Signal Input Load | 250 ohms max. |
| Dead Band | 1% of full scale |
| Repeat Accuracy | ± 1% of scaled max. (fixed conditions) |
| Display Type | 6 digit red LED display |
| Display Ranges | Level: 00.0 to 346 ft Runtime: zero to 99,999.9 hours Delay: zero to 30 seconds |
| Display Resolution | 1 decimal place |
| Control Contacts | 4 10A@120VAC |
| Power Loss Relay | 1 5A@120VAC |
| Signal Output | Output is factory set to track the 4-20mA input. Zero and span adjustments are provided: as little as a 2mA change can cause a full swing of the output. |
| Signal Output Load | 300 ohms max. |
| Probe Supply | 24VDC regulated |
| Setpoints | 3 levels, 2 alarms, all user-adjustable |
| Operating Temp | +14º to +122º F |
| Humidity Tolerance | 0-97% w/o condensation |
| Enclosure Material | 16 gauge steel |
| Termination | removable terminal strips |
| Dimensions | H: 5.5 W: 12.0 D: 4.75 |
| Weight | 6.0 pounds |
| Agency Approvals | UL Recognized (U.S. & Canadian) |
| Series Features |

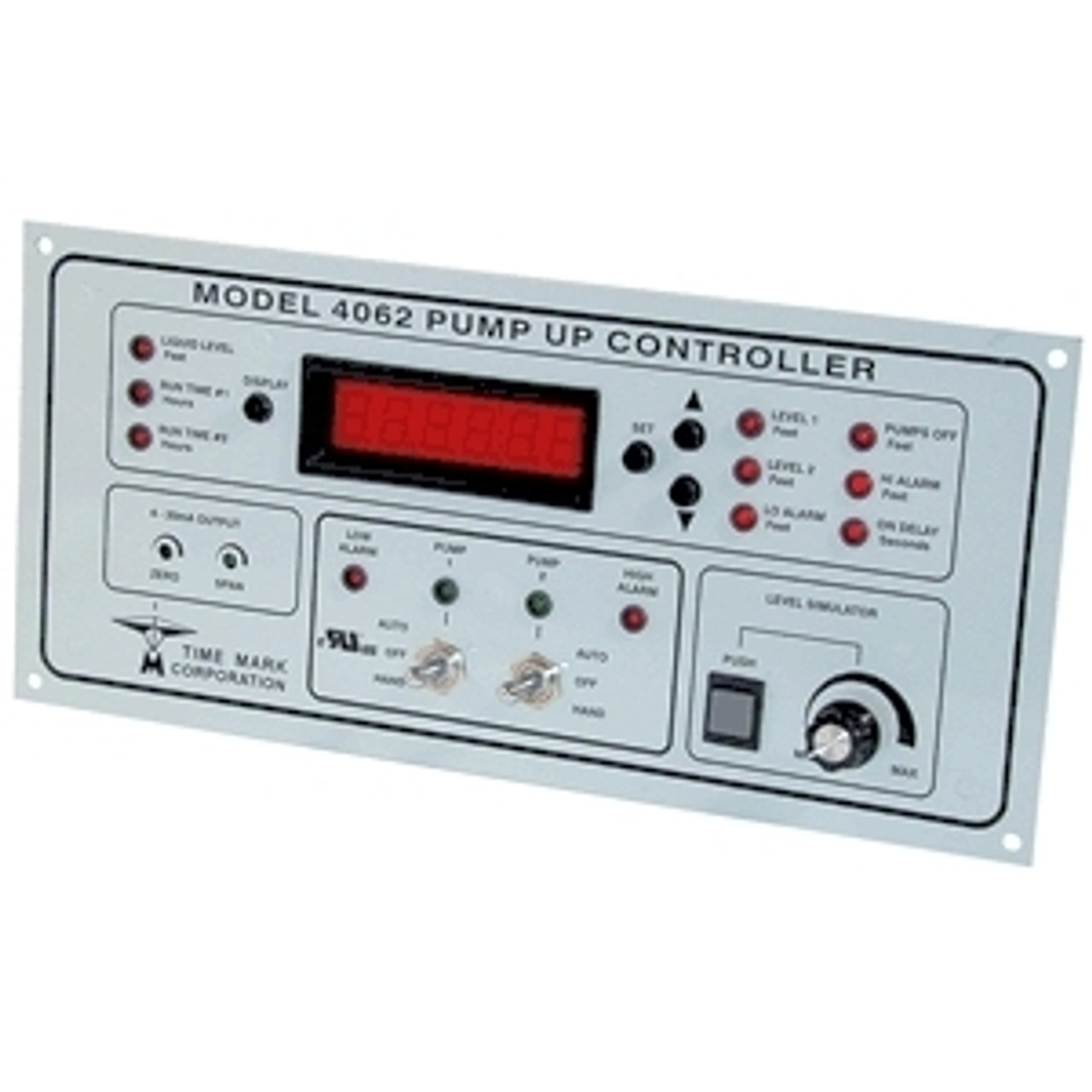

| MODEL 4062 Pump-Up Controller |
| Series Description: The Model 4062 Pump-Up Controller provides total control for duplex pumping systems. The Model 4062 monitors, controls and displays the liquid level in a tank or reservoir. Maximum selectable depth is from 11.5 ft. to 346 ft. The input to the Model 4062 can be from any 2 or 3-wire transducer with a 4-20mA output representing the selected depth. A 24VDC regulated probe supply is included. A Level Simulator is provided to aid in programming these five set points; Low Alarm, Pumps Off, Level 1, Level 2 and High Alarm. A universal zero to 30 second On Delay can be programmed to prevent outputs from closing due to input fluctuations caused by turbulent conditions. An additional 4-20mA output with zero and span controls is provided for a chart recorder or other external device. Four heavy-duty 10 amp, 120V contacts are provided for pump control and alarm activation. An auto-dialer or other emergency device can be activated with the power loss relay. This relay is held open when power is applied. Pump outputs include duplex alternation as well as hand-off-auto switches. Pump run-time can be displayed for each pump with tenth of an hour resolution, up to 99,999.9 hours. The Model 4062 can be panel-mounted (11 1/8 x 4 5/8) or surface-mounted using the optional surface-mounting kit (Model 4000). |
|
