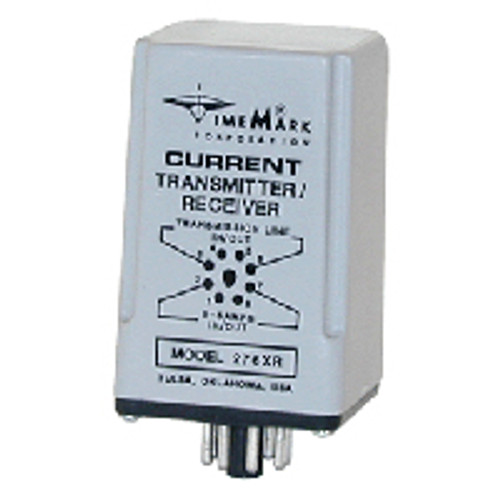

  • TimeMark 276XR Current Monitor Relays

    276XR

    TimeMark

    Description: Current Monitor Relay • Type: Current Transmitter/Receiver • Coil Voltage: none required • Contact Configuration: -- • Mounting: Plug-in - 8 Pin Octal • Current Range Monitored: 0-5 Amps

    $133.33
    $133.33
  • TimeMark 300 Multi-Function

    300

    TimeMark

    Description: Time Delay Relay • Multi-Function • Input Voltage : 24-240 VAC, 12-240 VDC • Timing Range : 0.15 sec-64 min • Mounting : Plug-in - 8 Pin Octal • Contact Configuration: SPDT (1 Form C) •...

    Call for Price
  • TimeMark A264-120VAC Phase Monitor Relays

    A264-120VAC

    TimeMark

    Description: 3-Phase Monitor Relay • Type: Reversal, Loss, Voltage • Coil Voltage: 110/120 VAC • Contact Configuration: SPST-NO + SPST-NC (1 Form A + 1 Form B) • Mounting: Base • Contact Current: 10...

    Call for Price
  • TimeMark B264 Phase Monitor Relays

    B264

    TimeMark

    Description: 3-Phase Monitor Relay • Type: Reversal, Loss, Voltage • Coil Voltage: 208/240 VAC • Contact Configuration: SPST-NO + SPST-NC (1 Form A + 1 Form B) • Mounting: Base • Contact Current: 10...

    Call for Price
  • TimeMark C264 Phase Monitor Relays

    C264

    TimeMark

    Description: 3-Phase Monitor Relay • Type: Reversal, Loss, Voltage • Coil Voltage: 480 VAC • Contact Configuration: SPST-NO + SPST-NC (1 Form A + 1 Form B) • Mounting: Base • Contact Current: 10 Amps

    Call for Price
  • TimeMark C265-480VAC Phase Monitor Relays

    C265-480VAC

    TimeMark

    Description: 3-Phase Monitor Relay • Type: Reversal, Loss, Voltage • Coil Voltage: 480 VAC • Contact Configuration: SPDT (1 Form C) • Mounting: Base • Contact Current: 10 Amps

    Call for Price
  • TimeMark D264 Phase Monitor Relays

    D264

    TimeMark

    Description: 3-Phase Monitor Relay • Type: Reversal, Loss, Voltage • Coil Voltage: 575 VAC • Contact Configuration: SPST-NO + SPST-NC (1 Form A + 1 Form B) • Mounting: Base • Contact Current: 10 Amps

    Call for Price
  • TimeMark EX264-380V/50HZ Phase Monitor Relays

    EX264-380V/50HZ

    TimeMark

    Description: 3-Phase Monitor Relay • Type: Reversal, Loss, Voltage • Coil Voltage: 380 VAC • Contact Configuration: SPST-NO + SPST-NC (1 Form A + 1 Form B) • Mounting: Base • Contact Current: 10 Amps

    Call for Price
  • TimeMark EX264-415V/50HZ Phase Monitor Relays

    EX264-415V/50HZ

    TimeMark

    Description: 3-Phase Monitor Relay • Type: Reversal, Loss, Voltage • Coil Voltage: 415 VAC • Contact Configuration: SPST-NO + SPST-NC (1 Form A + 1 Form B) • Mounting: Base • Contact Current: 10 Amps

    Call for Price
  • TimeMark 108A Line Voltage & Phase Sequence Detector

    TimeMark 108A

    TimeMark

    The TimeMark 108A is a line voltage and phase sequence detector. It shows phase sequence (ABC / CBA), voltage on each phase and which phase is missing. Line voltage: 90 - 600V AC (phase sequence);...

    Call for Price
  • TimeMark 108B Phase Sequence Detector

    TimeMark 108B

    TimeMark

    The TimeMark 108B is a phase sequence detector. It shows phase sequence (ABC / CBA) and loss of a phase. Line voltage: 208 - 480V AC (phase to phase). Frequency: 50/60 Hz. Phases: 3-phase, wye or...

    Call for Price
  • TimeMark 108C Motor Rotation Indicator

    TimeMark 108C

    TimeMark

    The TimeMark 108C is a motor rotation indicator. It shows a de-energized motor's rotation (connection sequence) when the shaft is turned 1/4 turn. Phases: 3-phase motor leads. Indication: A-B-C and...

    $128.33
    $128.33
  • TimeMark 108D Line Voltage & Phase Sequence Detector

    TimeMark 108D

    TimeMark

    The TimeMark 108D is a line voltage and phase sequence detector. It shows phase sequence (ABC / CBA), voltage on each phase and which phase is missing. Line voltage: 90 - 600V AC (phase sequence);...

    Call for Price
  • TimeMark 15-240 Phase Monitor Relay

    TimeMark 15-240

    TimeMark

    The TimeMark 15-240 is a reverse phase correction relay for 240 V AC, 50/60 Hz systems. When it senses reversed phase rotation it corrects it automatically through its 3P3T 3-phase contacts, and an...

    $155.00
    $155.00
  • TimeMark 15-480 Phase Monitor Relay

    TimeMark 15-480

    TimeMark

    The TimeMark 15-480 is a reverse phase correction relay for 480 V AC, 50/60 Hz systems. When it senses reversed phase rotation it corrects it automatically through its 3P3T 3-phase contacts, and an...

    $155.00
    $155.00
  • TimeMark 153 Phase Monitor Relay

    TimeMark 153

    TimeMark

    The TimeMark 153 is a reverse phase relay for 190-500 V AC, 50/60 Hz systems. It drops its output relay out on phase reversal and resets once the fault clears. Trip delay: phase loss / reversal 0.05...

    $86.25
    $86.25
  • TimeMark 158B Phase Monitor Relay

    TimeMark 158B

    TimeMark

    The TimeMark 158B is a 3-phase monitor for 208/240 V AC, 60 Hz systems. It drops its output relay out on phase loss, phase reversal and undervoltage and resets once the fault clears. Trip points:...

    Call for Price
  • TimeMark 158BR Phase Monitor Relay

    TimeMark 158BR

    TimeMark

    The TimeMark 158BR is a 3-phase monitor for 208/240 V AC, 60 Hz systems. It drops its output relay out on phase loss, phase reversal and undervoltage and resets once the fault clears. Trip points:...

    Call for Price
  • TimeMark 16-1-H-P Voltage Monitor Relay

    TimeMark 16-1-H-P

    TimeMark

    The TimeMark 16-1-H-P is an over/under voltage monitor for 30-277 V AC/DC systems. Its high and low set points are configured in the field for over, under or over/under voltage; the relays drop out...

    $138.33
    $138.33
  • TimeMark 16-1-H-S Voltage Monitor Relay

    TimeMark 16-1-H-S

    TimeMark

    The TimeMark 16-1-H-S is an over/under voltage monitor for 30-277 V AC/DC systems. Its high and low set points are configured in the field for over, under or over/under voltage; the relays drop out...

    $138.33
    $138.33
  • TimeMark 16-1-L-P Voltage Monitor Relay

    TimeMark 16-1-L-P

    TimeMark

    The TimeMark 16-1-L-P is an over/under voltage monitor for 12-30 V AC/DC systems. Its high and low set points are configured in the field for over, under or over/under voltage; the relays drop out...

    $138.33
    $138.33
  • TimeMark 16-1-L-S Voltage Monitor Relay

    TimeMark 16-1-L-S

    TimeMark

    The TimeMark 16-1-L-S is an over/under voltage monitor for 12-30 V AC/DC systems. Its high and low set points are configured in the field for over, under or over/under voltage; the relays drop out...

    $138.33
    $138.33
  • TimeMark 160B120 Voltage Monitor Relay

    TimeMark 160B120

    TimeMark

    The TimeMark 160B120 is a voltage sensor for 120 V AC systems. Its relay energizes when the voltage rises above the set point and drops out below it, so it serves as an over- or an undervoltage relay...

    $112.50
    $112.50
  • TimeMark 160B240 Voltage Monitor Relay

    TimeMark 160B240

    TimeMark

    The TimeMark 160B240 is a voltage sensor for 208/240 V AC systems. Its relay energizes when the voltage rises above the set point and drops out below it, so it serves as an over- or an undervoltage...

    $112.50
    $112.50
  • TimeMark 160B480 Voltage Monitor Relay

    TimeMark 160B480

    TimeMark

    The TimeMark 160B480 is a voltage sensor for 480 V AC systems. Its relay energizes when the voltage rises above the set point and drops out below it, so it serves as an over- or an undervoltage relay...

    $112.50
    $112.50
  • TimeMark 160BR120 Voltage Monitor Relay

    TimeMark 160BR120

    TimeMark

    The TimeMark 160BR120 is a voltage sensor for 120 V AC systems. Its relay energizes when the voltage rises above the set point and drops out below it, so it serves as an over- or an undervoltage...

    $120.83
    $120.83
  • TimeMark 160BR240 Voltage Monitor Relay

    TimeMark 160BR240

    TimeMark

    The TimeMark 160BR240 is a voltage sensor for 208/240 V AC systems. Its relay energizes when the voltage rises above the set point and drops out below it, so it serves as an over- or an undervoltage...

    $120.83
    $120.83
  • TimeMark 160BR480 Voltage Monitor Relay

    TimeMark 160BR480

    TimeMark

    The TimeMark 160BR480 is a voltage sensor for 480 V AC systems. Its relay energizes when the voltage rises above the set point and drops out below it, so it serves as an over- or an undervoltage...

    $120.83
    $120.83
  • TimeMark 171 Current Monitor Relay

    TimeMark 171

    TimeMark

    The TimeMark 171 is an undercurrent monitor for 0.1-1 A AC. Its relay picks up once the current is 5% above the drop-out setting, after the restart delay, and drops out when the current stays at or...

    $152.50
    $152.50
  • TimeMark 173-25 Current Monitor Relay

    TimeMark 173-25

    TimeMark

    The TimeMark 173-25 is a current monitor for 5-25 A AC. Its relay energizes when the current rises above the set point and drops out below it, so it serves as an over- or an undercurrent relay...

    $175.00
    $175.00
  • TimeMark 173-5 Current Monitor Relay

    TimeMark 173-5

    TimeMark

    The TimeMark 173-5 is a current monitor for 1-5 A AC. Its relay energizes when the current rises above the set point and drops out below it, so it serves as an over- or an undercurrent relay...

    $175.00
    $175.00
  • TimeMark 1732 Current Monitor Relay

    TimeMark 1732

    TimeMark

    The TimeMark 1732 is a self-powered current monitor for 25-150 A AC. It needs no supply: it powers itself from the monitored current, which must exceed 25 A. Its relay switches as the current crosses...

    $270.83
    $270.83
