To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | TimeMark |
| Manufacturer Product Number | 108C |
| Description | Phase Sequence Detector |
| Datasheet | Download Datasheet |

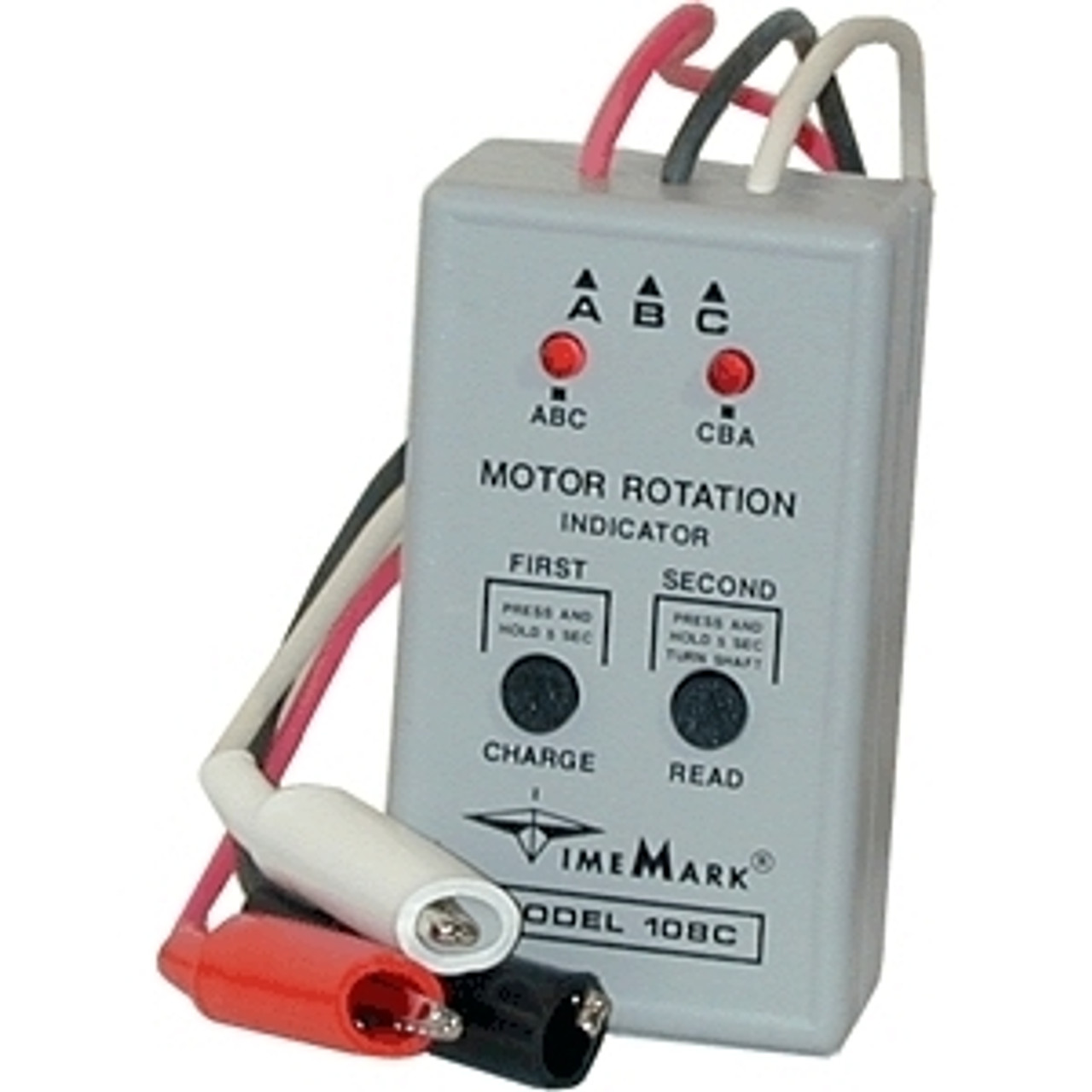

The TimeMark 108C is a motor rotation indicator. It shows a de-energized motor's rotation (connection sequence) when the shaft is turned 1/4 turn.
Phases: 3-phase motor leads. Indication: A-B-C and C-B-A lamps; CHARGE (FIRST) and READ (SECOND) pushbuttons. Leads: 18" color-coded leads with alligator clips: Red=phase A, Black=phase B, White=phase C. Power: 9 volt battery (included); no external power required. Body: ABS plastic.
Mounting: hand-held. Dimensions: 4.0" x 2.25" x 1.2".
| Category | |
| Manufacturer | TimeMark |
| Device Type | Hand-held motor rotation indicator |
| Function | Shows a de-energized motor's rotation (connection sequence) when the shaft is turned 1/4 turn |
| Number of Phases | 3-phase motor leads |
| Indication | A-B-C and C-B-A lamps; CHARGE (FIRST) and READ (SECOND) pushbuttons |
| Connection | 18" color-coded leads with alligator clips: Red=phase A, Black=phase B, White=phase C |
| Power Source | 9 volt battery (included); no external power required |
| Mounting Type | Hand-held |
| Dimensions | 4.0" x 2.25" x 1.2" |
| Housing Material | ABS plastic |
