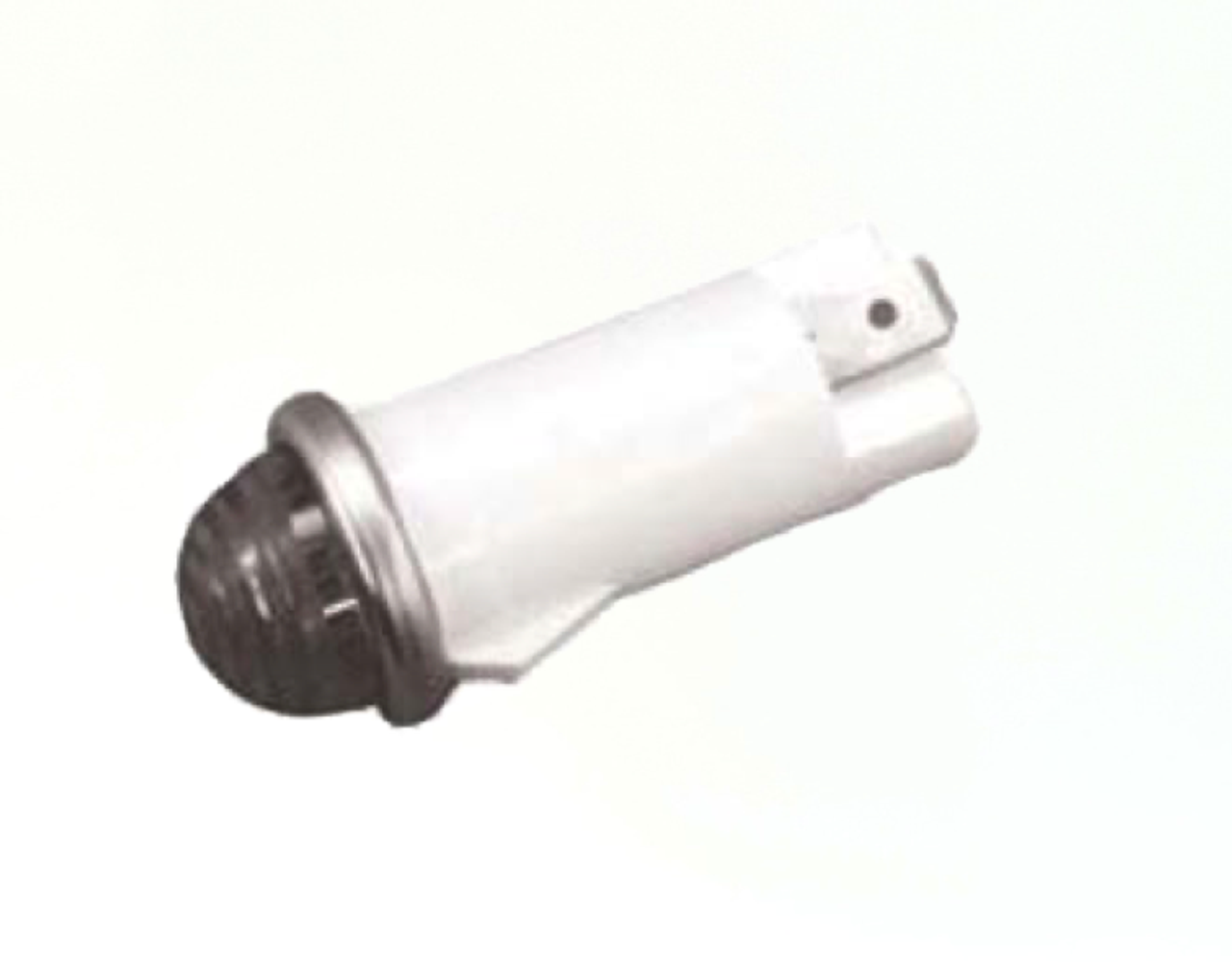

Product Description
Description: LED Indicators • Mounting Hole: Ø 0.500 • Type: LED • Voltage: 24V • Color: Yellow • Current: 20mA • Termination: .187 terminals are standard • Bezel material: Stainless Steel
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Hole | Ø 0.500 |
| Type | LED |
| Voltage | 24V |
| Color | Yellow |
| Current | 20mA |
| Rated Life Hours | 100000 |
| Recommended panel thickness | 0.030 to 0.090 |
| Termination | .187 terminals are standard |
| Storage temperature | -25°C - +80°C |
| Ambient temperature | -20°C - +60°C |
| Voltage tolerance | ±10% |
| Body material | Nylon, white |
| Lens material | Polycarbonate |
| Bezel material | Stainless Steel |
| Note | .250 quick connects available upon request |
| Anode (+) | Marked above terminal |
