To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | VCC |
| Manufacturer Product Number | CMD17-21VGD/TR8 |
| Description | Surface Mount LED; Green; 0805; 575 nm; 18 mcd; 150°; Green Diffused |
| Datasheet | Download Datasheet |

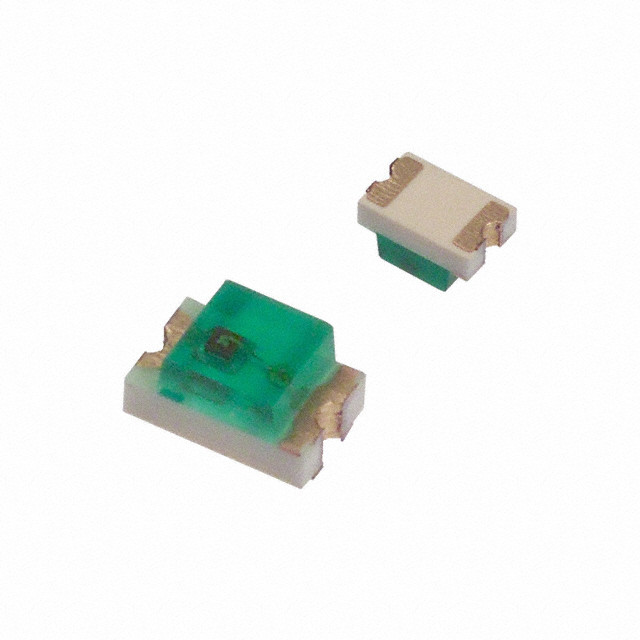

The VCC CMD17-21VGD/TR8 is a green surface mount LED in a 0805 package, with a peak wavelength of 575 nm.
It is rated 18 mcd typical (14 mcd minimum) at 20 mA, with a forward voltage of 2 V (2.4 V maximum).
Its green diffused lens gives a 150° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | VCC |
| Color | Green |
| Configuration | Single Color |
| Peak Wavelength (nm) | 575 |
| Luminous Intensity (mcd) | 18 |
| Luminous Intensity (Min) (mcd) | 14 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 2 |
| Forward Voltage (Max) (V) | 2.4 |
| Viewing Angle (°) | 150 |
| Lens | Green Diffused |
| Package Size | 0805 |
| Mounting Type | Surface Mount |
| Lens Size | 2.00mm x 1.25mm |
| Height (Max) (mm) | 1 |
| Forward Current (Max) (mA) | 25 |
| Power Dissipation (mW) | 60 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Moisture Sensitivity Level | 2 |
