To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | VCC |
| Manufacturer Product Number | CMD12-21VYC/TR8 |
| Description | Surface Mount LED; Yellow; 3.00x1.00x2.00mm; 585 nm; 3mcd; 120°; Water Clear |
| Datasheet | Download Datasheet |

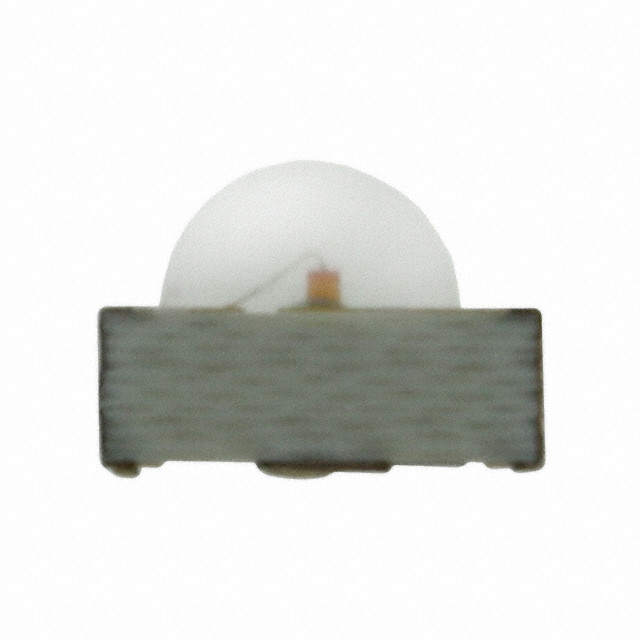

The VCC CMD12-21VYC/TR8 is a yellow right-angle surface mount LED in a 3.00x1.00x2.00mm package, with a peak wavelength of 585 nm.
It is rated 3 mcd typical (1.5 mcd minimum), with a forward voltage of 2 V (2.8 V maximum).
Its water clear lens gives a 120° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | VCC |
| Color | Yellow |
| Configuration | Single Color |
| Peak Wavelength (nm) | 585 |
| Luminous Intensity (mcd) | 3 |
| Luminous Intensity (Min) (mcd) | 1.5 |
| Forward Voltage (V) | 2 |
| Forward Voltage (Max) (V) | 2.8 |
| Viewing Angle (°) | 120 |
| Lens | Water Clear |
| Package Size | 3.00x1.00x2.00mm |
| Mounting Type | Surface Mount, Right Angle |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
| Height (Max) (mm) | 2 |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 85 |
| Operating Temperature (°C) | -40°C ~ +85°C |
