Product Description
Description: Type: True RMS Voltage Monitor
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Function | True RMS Voltage Monitor |
| Input Voltage | 80-550 Volts |
| Input Amps | 1mA |
| Frequency | 50/60Hz (400Hz optional with jumper) |
| DC Power | 24 Volts, 2 watts |
| Output | 240V AC, 10A, Resistive 120V AC, 4A, General Use 240V AC, 2A, General Use C300, Pilot Duty |
| Start-up Delay | 5 secs. Min. or Automatic reset delay setting (to allow for solid lock) |
| Output Contacts | SPDT x 2 10 Amps @ 240VAC |
| Repeat Accuracy | ± 0.5 % (fixed conditions) |
| Reset Type | Manual or Automatic |
| Expected Relay Life | Mech: 10 million operations Elec: 100,000 min. at rated load |
| Operating Temp | -20°F to +130°F |
| Humidity Tolerance | 0-97% w/o condensation |
| Enclosure Material | Lexan 920 Polycarbonate UL 94 V-0 1.5 mm |
| Mounting | DIN Rail 35mm |
| Weight | 8.5 oz. |
| Series Features |

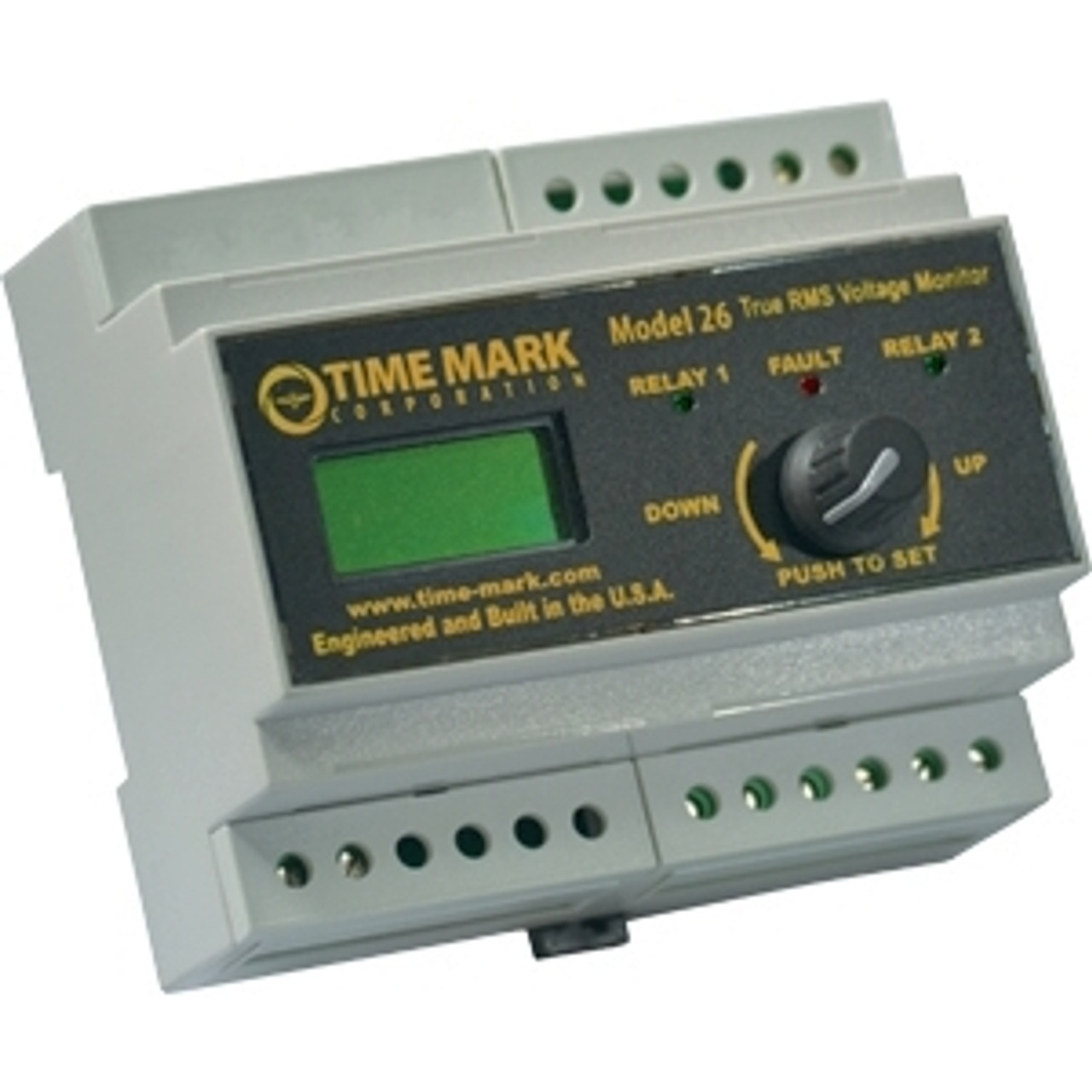

| MODEL 26 True RMS Voltage Monitor |
| Series Description: Model 26 True RMS Voltage Monitor has a display that shows the voltage with an accuracy of +/- 0.5%. The display is updated every second and re-initialized every 30 seconds. Model 26 has a rotary encoder with switch on the unit. By pressing the encoder switch for more than 5 seconds, the unit will enter the setup mode. This unit has a user selectable relay option for High-Low or DPDT. It can also be user-selected to energize on fault or de-energize on fault. The user can select automatic or manual restart on the Model 26. Model 26 True RMS Voltage Monitor can be either calibrated using a True RMS Voltmeter or can be restored to factory defaults in the field. |
|
