To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | TimeMark |
| Manufacturer Product Number | 276B3-1200 |
| Description | Instrument Transformer; 3-Phase Current Transformer; 1200:5; 25; 1% |
| Datasheet | Download Datasheet |

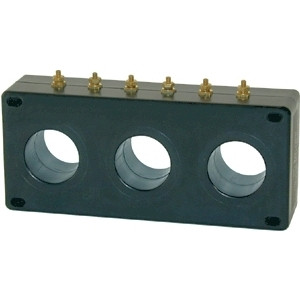

The TimeMark 276B3-1200 is a 3-phase current transformer, ratio 1200:5, 25 VA burden, 1% accuracy, panel mount (slots).
Construction: ring type, three windows (3-phase). Window: 2.08" diameter. Secondary: 5 A. Frequency: 25-400 Hz. Secondary terminals: #8-32 brass studs. Secondary winding resistance: 0.1540 ohm at 75 °C. For use with: TimeMark current monitors, 421 / 422 motor load controls and 278 / 2780 transducers (1 primary turn). Dimensions: 9.0" x 3.94" x 2.0". Approvals: UL Recognized, CSA Certified.
| Category | |
| Manufacturer | TimeMark |
| Product Type | 3-Phase Current Transformer |
| Current Ratio | 1200:5 |
| Burden (VA) | 25 |
| Accuracy | 1% |
| Mounting Style | Panel mount (slots) |
| Construction | Ring type, three windows (3-phase) |
| Secondary Output | 5 A |
| Window Size | 2.08" diameter |
| Frequency Range | 25-400 Hz |
| Secondary Terminals | #8-32 brass studs |
| Secondary Winding Resistance | 0.1540 ohm at 75 °C |
| For Use With | TimeMark current monitors, 421 / 422 motor load controls and 278 / 2780 transducers (1 primary turn) |
| Dimensions | 9.0" x 3.94" x 2.0" |
| Approvals | UL Recognized, CSA Certified |
