To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | TimeMark |
| Manufacturer Product Number | 276A-10 |
| Description | Instrument Transformer; CT; 10:5; Panel mount (screw holes) |
| Datasheet | Download Datasheet |

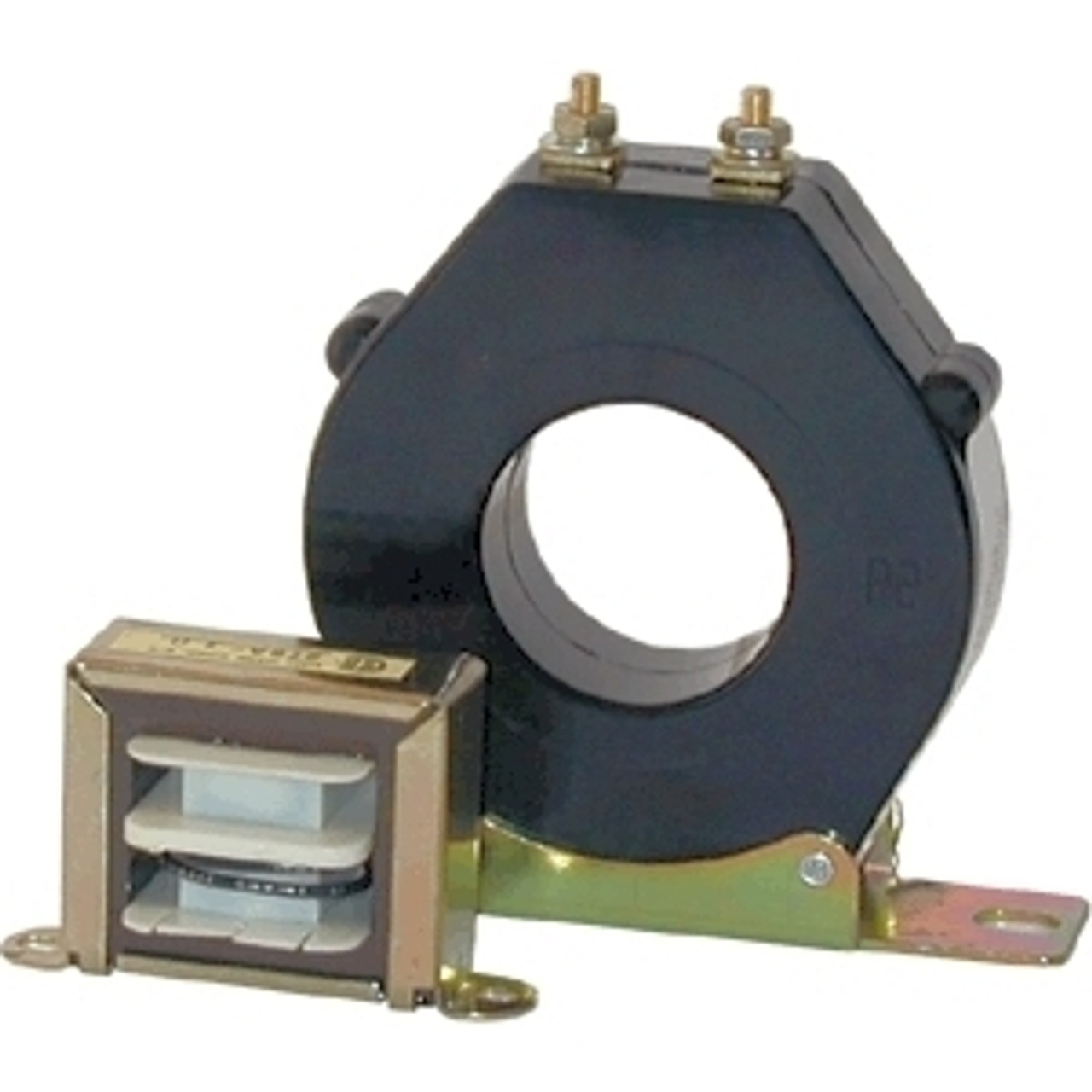

The TimeMark 276A-10 is a current transformer, ratio 10:5, panel mount (screw holes).
Construction: open frame. Window: 0.25" x 0.38" (one primary turn, up to 8 AWG). Secondary: 5 A. Frequency: 25-400 Hz. Insulation: 2500 V RMS. Secondary terminals: #8-32 screw terminals. For use with: TimeMark current monitors, 421 / 422 motor load controls and 278 / 2780 transducers (1 primary turn). Approvals: CSA Certified.
| Category | |
| Manufacturer | TimeMark |
| Product Type | Current Transformer |
| Current Ratio | 10:5 |
| Mounting Style | Panel mount (screw holes) |
| Construction | Open frame |
| Secondary Output | 5 A |
| Window Size | 0.25" x 0.38" (one primary turn, up to 8 AWG) |
| Frequency Range | 25-400 Hz |
| Insulation | 2500 V RMS |
| Secondary Terminals | #8-32 screw terminals |
| For Use With | TimeMark current monitors, 421 / 422 motor load controls and 278 / 2780 transducers (1 primary turn) |
| Approvals | CSA Certified |
