Product Description
Description: Time Delay Relays • Repeat Cycle - Recycle • Voltage : 40-260V AC/DC • Power Consumption : 3W • Timing Ranges : 1 - 1023 Sec. • Contacts : DPDT • Mounting : 8-pin socket • Output: 240V AC, 10A, Resistive
120V AC, 4A, General Use
240V AC, 2A, General Use
C300, Pilot Duty • Adjustment: Digital • Contact rating: 10A at 240VAC resistive
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Voltage | 40-260V AC/DC |
| Power Consumption | 3W |
| Timing Ranges | 1 - 1023 Sec. |
| Contacts | DPDT |
| Mounting | 8-pin socket |
| Output | 240V AC, 10A, Resistive 120V AC, 4A, General Use 240V AC, 2A, General Use C300, Pilot Duty |
| Adjustment | Digital |
| Accuracy | ± 2% |
| Repeatability | ± 0.1% |
| Recycle time | 100ms |
| Operating temp | -20°F to 140°F |
| Contact rating | 10A at 240VAC resistive |
| Transient protection | 775V, 80 Joules |
| Humidity tolerance | 0 - 97% w/o condensation |
| Enclosure material | NORYL Plastic |
| Weight | 5 oz. |
| Agency approval | UL Recognized and CSA Certified |
| Additional Options | /C = Custom (Voltage and/or Timing) /SG = Silver with Gold Flash Contacts |
| Series Features |

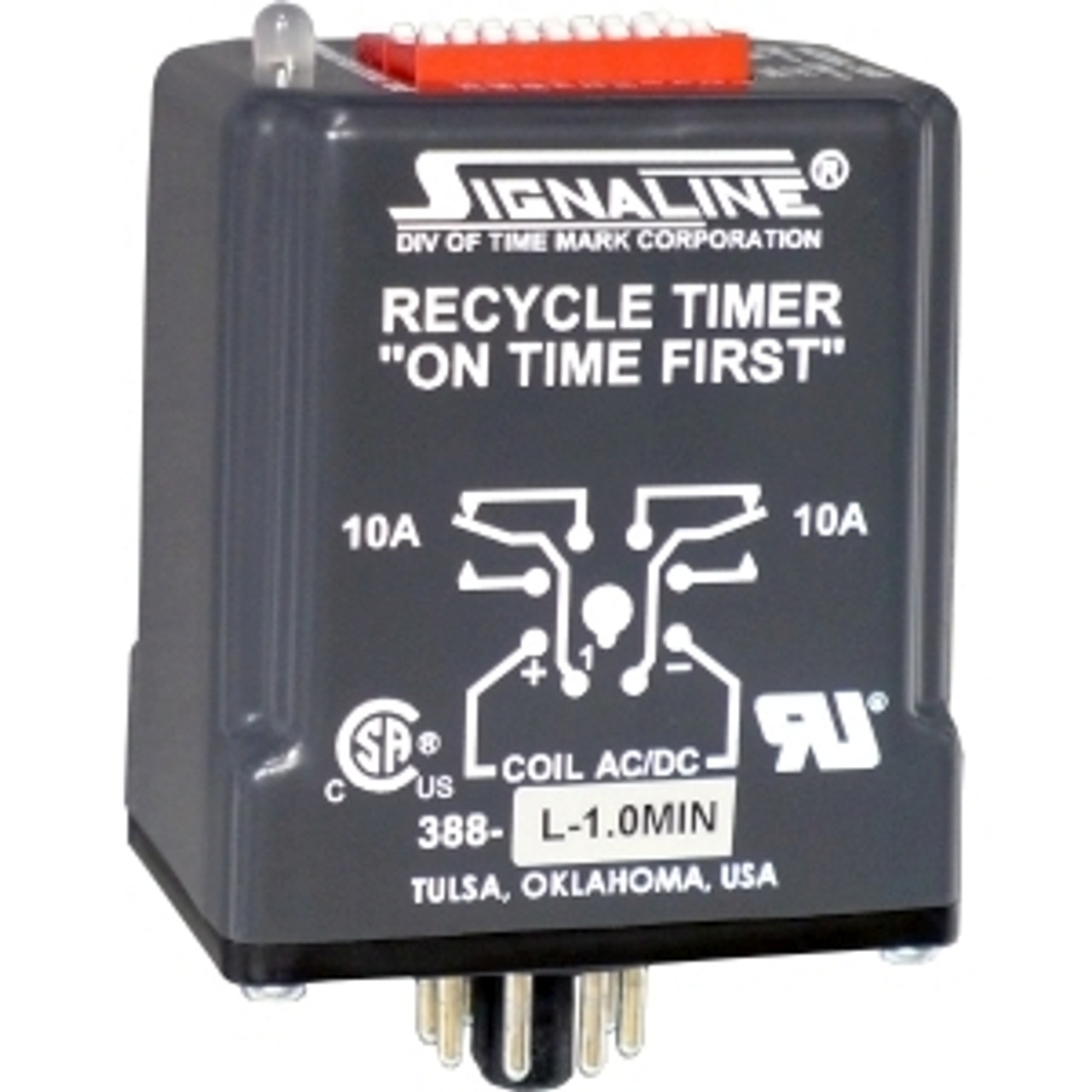

| MODEL 358 MODEL 388 Recycle Timers On Time First |
| Series Description: The Models 358 and 388 Recycle Timers (On Time First) are designed to cycle a load on and off, or to cycle between two loads. The ON and OFF cycles are independently adjustable on each model. The Model 358 is a DPDT potentiometer (knob-adjust) timer. The Model 388 is a DPDT, high-accuracy digital input timer. Solidstate circuits in each model drive an internal electromechanical relay. Each model is functionally interchangeable. They are available in a wide variety of voltage and timing ranges, to cover the majority of application requirements. An SG version of this model is available using silver with gold flash contacts. Models 358 and 388 are UL Recognized and CSA Certified. |
|
