Product Description
Description: Time Delay Relays • Lockout • Voltage : 40-260V AC/DC • Power Consumption : 3W • Timing Ranges : 1 - 180 Sec. • Contacts : DPDT • Mounting : 8-pin socket • Output: 240V AC, 10A, Resistive
120V AC, 4A, General Use
240V AC, 2A, General Use
C300, Pilot Duty • Adjustment: Knob • Contact rating: 10A at 240VAC resistive
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Voltage | 40-260V AC/DC |
| Power Consumption | 3W |
| Timing Ranges | 1 - 180 Sec. |
| Contacts | DPDT |
| Mounting | 8-pin socket |
| Output | 240V AC, 10A, Resistive 120V AC, 4A, General Use 240V AC, 2A, General Use C300, Pilot Duty |
| Adjustment | Knob |
| Accuracy | ± 5% |
| Repeatability | ± 2% |
| Recycle time | 100ms |
| Operating temp | -20°F to 140°F |
| Contact rating | 10A at 240VAC resistive |
| Expected relay life | Mechanical: 10 million operations Electrical: 100,000 operations at rated load |
| Operating temperature | -20° to +140° F |
| Humidity tolerance | 0-97% without condensation |
| Transient protection | 775V, 80 Joules |
| Case material | NORYL Plastic |
| Weight | 4.5 oz. |
| Additional Options | /C = Custom (Voltage and/or Timing) /SG = Silver with Gold Flash Contacts |
| Series Features |

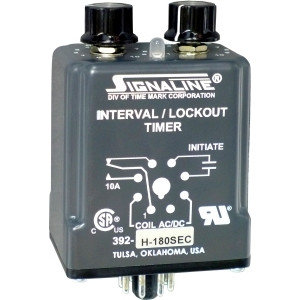

| MODEL 392 Interval/Lockout Timer |
| Series Description: The Model 392 Interval Lockout Timer is useful when you wish to de-energize the relay for a set period of time. Power is applied to the coil all the time. The Dry contact must close the initiate switch and re-open to energize the relay for the On time setting. At the end of the On time, the relay will de-energize and remain de-energized for the lockout time period. Closing and re-opening the initiate switch during the timing has no effect on the operation of the relay. At the end of the Lockout time the relay can be operated as before. An SG version of this model is available using silver with gold flash contacts. The Model 392 is UL Recognized and CSA Certified. |
|
