Product Description
Description: Time Delay Relays • Instantaneous Switch / Delay on Make • Voltage : 40-260V AC/DC • Power Consumption : 3W • Timing Ranges : 1 - 60 Sec. • Contacts : Two SPDT Relays • Mounting : 8-pin socket • Output: 240V AC, 10A, Resistive
120V AC, 4A, General Use
240V AC, 2A, General Use
C300, Pilot Duty • Adjustment: Knob • Contact rating : 10A at 240VAC resistive
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Voltage | 40-260V AC/DC |
| Power Consumption | 3W |
| Timing Ranges | 1 - 60 Sec. |
| Contacts | Two SPDT Relays |
| Mounting | 8-pin socket |
| Output | 240V AC, 10A, Resistive 120V AC, 4A, General Use 240V AC, 2A, General Use C300, Pilot Duty |
| Adjustment | Knob |
| Accuracy | ± 5% |
| Repeatability | ± 2% |
| Recycle time | 100ms |
| Operating temp | -20°F to +140°F |
| Contact rating | 10A at 240VAC resistive |
| Transient protection | 775V, 80 Joules |
| Humidity tolerance | 0 - 97% w/o condensation |
| Enclosure material | NORYL Plastic |
| Weight | 5 oz. |
| Agency approval | *UL Recognized and CSA Certified |
| Additional Options | /C = Custom (Voltage and/or Timing) /SG = Silver with Gold Flash Contacts |
| Series Features |

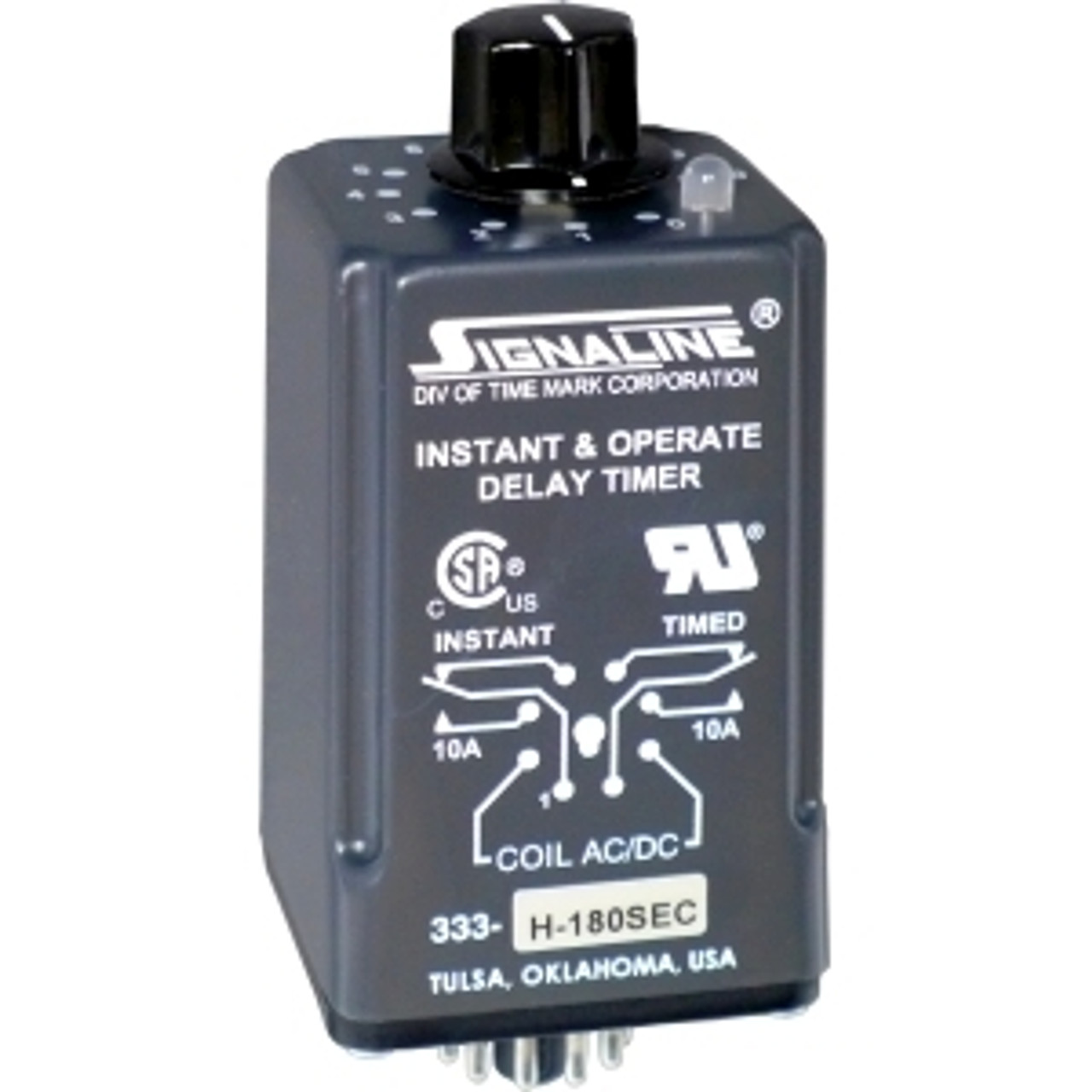

| MODEL 333 MODEL 363 Instant & Operate Delay Timer |
| Series Description: The Model 333 and 363 Instant & Operate Delay Timers are industrial quality devices with a high accuracy electronic timing circuit driving two internal SPDT relays. One relay transfers upon application of power, the other relay transfers after a delay period. Each model is functionally interchangeable and available in multiple voltage/timing range combinations. The Model 333 is a potentiometer (knob-adjust) timer and the Model 363 is a high-accuracy digital input timer. An SG version of this model is available using silver with gold flash contacts. Models 333 and 363 are UL Recognized and CSA Certified. |
|
