Product Description
Description: Time Delay Relays • Delay on Make • Voltage : 10-28V AC/DC • Power Consumption : 3W • Timing Ranges : 1 - 180 Sec. • Contacts : DPDT • Mounting : 8-pin socket • Output: 240V AC, 10A, Resistive
120V AC, 4A, General Use
240V AC, 2A, General Use
C300, Pilot Duty • Adjustment: Knob • Contact rating : 10A at 240VAC resistive
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Voltage | 10-28V AC/DC |
| Power Consumption | 3W |
| Timing Ranges | 1 - 180 Sec. |
| Contacts | DPDT |
| Mounting | 8-pin socket |
| Output | 240V AC, 10A, Resistive 120V AC, 4A, General Use 240V AC, 2A, General Use C300, Pilot Duty |
| Adjustment | Knob |
| Accuracy | ± 5% |
| Repeatability | ± 2% |
| Recycle time | 100ms |
| Operating temp | -20°F to 140°F |
| Contact rating | 10A at 240VAC resistive |
| Transient protection | 775V, 80 Joules |
| Humidity tolerance | 0 - 97% w/o condensation |
| Enclosure material | NORYL Plastic |
| Weight | 5 oz. |
| Agency approval | UL Recognized and CSA Certified |
| Additional Options | /C = Custom (Voltage and/or Timing) /SG = Silver with Gold Flash Contacts |
| Series Features |

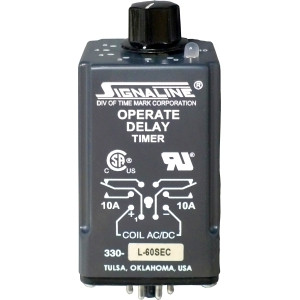

| MODEL 330 MODEL 360 Operate Delay Timers |
| Series Description: The Models 330 and 360 Operate Delay Timers are designed for a wide range of industrial applications. Examples include automatic and machine tool control circuits, HVAC circuits, and warm-up delay circuits. The Model 330 is a DPDT potentiometer (knob-adjust) timer. The Model 360 is a DPDT, high-accuracy digital input timer. Solid-state timing circuits in each model drive an internal electromechanical relay. Each model is functionally interchangeable. They are available in a variety of voltage and timing ranges to cover all possible applications. An SG version of this model is available using silver with gold flash contacts. Models 330 and 360 are UL Recognized and CSA Certified. |
|
