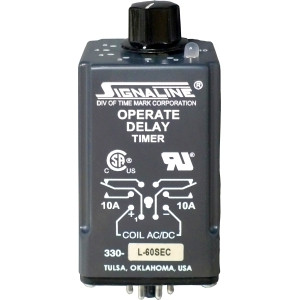

Product Description
Description: Time Delay Relay • Delay on Make • Voltage : 40-260V AC/DC • Power Consumption : 3W • Timing Ranges : 1 - 10 Sec. • Contacts : DPDT • Mounting : 8-pin socket • Output: 240V AC, 10A, Resistive
120V AC, 4A, General Use
240V AC, 2A, General Use
C300, Pilot Duty • Adjustment: Knob • Contact rating : 10A@240VAC
| Product Information | | Resources |
| Manufacturer | TimeMark | | Product Category | Time Delay Relay | | Product Sub Category | Delay on Make | | Series | Model 330 |
| | |
Product Attribute
| Attribute Value
|
| Voltage | 40-260V AC/DC |
| Power Consumption | 3W |
| Timing Ranges | 1 - 10 Sec. |
| Contacts | DPDT |
| Mounting | 8-pin socket |
| Output | 240V AC, 10A, Resistive
120V AC, 4A, General Use
240V AC, 2A, General Use
C300, Pilot Duty |
| Adjustment | Knob |
| Accuracy | ± 5% |
| Repeatability | ± 2% |
| Recycle time | 100ms |
| Operating temp | -20°F to 140°F |
| Contact rating | 10A@240VAC |
| Transient protection | 775V, 80 Joules |
| Humidity tolerance | 0 - 97% w/o condensation |
| Enclosure material | NORYL Plastic |
| Weight | 5 oz. |
| Agency approval | UL Recognized and CSA Certified |
| Additional Options | /C = Custom (Voltage and/or Timing)
/SG = Silver with Gold Flash Contacts |
| MODEL 330 MODEL 360 Operate Delay Timers |
| Series Description: The Models 330 and 360 Operate Delay Timers are designed for a wide range of industrial applications. Examples include automatic and machine tool control circuits, HVAC |
- Solid-State Design
- 10 Amp Relay Contacts
- Multiple Voltage and Timing Ranges
- 5-Year Unconditional Warranty
|
