To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | TimeMark |
| Manufacturer Product Number | 280-24AC |
| Description | Power Relay; 2C DPDT; 24 V AC; AC; Socketable; Plug In, 8 Pin (Octal) |
| Datasheet | Download Datasheet |

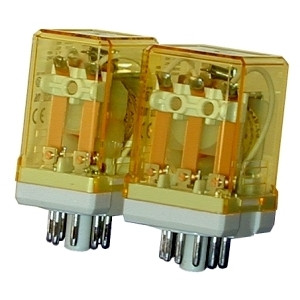

The TimeMark 280-24AC is a general-purpose plug-in relay with a 24 V AC coil.
Contacts: 2C DPDT. Contact rating: 10 A at 240 V AC / 30 V DC resistive; 7 A inductive. Operate / release: 25 ms max / 25 ms max. Life: 10,000,000 operations mechanical, 500,000 electrical.
Mounting: plug-in, 8 pin (octal). It operates from -30 to +70 °C. Approvals: UL Recognized, CSA Certified.
| Category | |
| Manufacturer | TimeMark |
| Model | 280 |
| Mounting Type | Socketable |
| Coil Voltage | 24 V AC |
| Contact Configuration | 2C DPDT |
| Contact Rating (A) | 10 A at 240 V AC / 30 V DC resistive; 7 A inductive |
| Contact Material | Silver (Ag) |
| Coil Type | AC |
| Termination Style | Plug In, 8 Pin (Octal) |
| Number of Poles | 2 |
| Approvals | UL Recognized, CSA Certified |
| Operate Time (ms) | 25 ms max |
| Release Time (ms) | 25 ms max |
| Operating Temperature (°C) | -30...+70 |
| Mechanical Life | 10,000,000 cycles (500,000 cycles) |
