Product Description
Description: Phase Monitor Relays • Adjustment Range - Lower: 300 - 400V • Adj Range - Upper: 350 - 450V • Adj Range - Lower: 300 - 400V • Frequency: 50Hz • Power Consumption: 6W • Output Contacts : SPDT 10A at 240VAC resistive • Mounting : Surface
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Adjustment Range - Lower | 300 - 400V |
| Adj Range - Upper | 350 - 450V |
| Adj Range - Lower | 300 - 400V |
| Frequency | 50Hz |
| Power Consumption | 6W |
| Transient Protection | 2500VRMS for 10ms |
| Repeat Accuracy | ± 0.1% of set point (fixed conditions) |
| Response Time | Adjustable from 1-10 seconds ±5% |
| Reset Time | 0.25 seconds |
| Reset Type | Automatic |
| Dead Band | Approximately 2% |
| Output Contacts | SPDT 10A at 240VAC resistive |
| Expected Relay Life | Mech: 10 million operations Elec: 100,000 operations at rated load |
| Operating Temp | -20oto+130o F |
| Humidity Tolerance | 0-97% w/o condensation |
| Enclosure Material | ABS Plastic |
| Mounting | Surface |
| Weight | 9 oz. |
| Agency Approval | UL Listed & CSA Certified |
| Series Features |

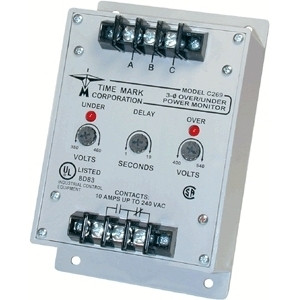

| MODEL 269 Over & Under 3-Phase Monitor |
| Series Description: The Model 269 Over and Under 3-Phase Monitor continuously monitors 3-phase lines for high voltage, low voltage, phase loss or phase reversal. This device features a solid-state voltage and phase-angle sensing circuit, which drives a SPDT output relay. The Model 269 is independent of the system load, and may be used on any horsepower motor. When phase sequence is correct, and the voltage remains between the upper and lower trip points, the output relay remains energizes. When a fault condition is sensed, the output relay drops out. The Model 269 does not require a neutral connection, and can be used on Wye or Delta systems. Each of the four voltage versions can be adjusted over a wide range. An adjustable trip delay (1-10 seconds) prevents nuisance tripping. OVER and UNDER voltage failure indicators aid in calibration and system troubleshooting. |
|
