To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | TimeMark |
| Manufacturer Product Number | 2581-208 |
| Description | Phase Monitor Relay; 3-Phase; 208V AC; 1C SPDT |
| Datasheet | Download Datasheet |

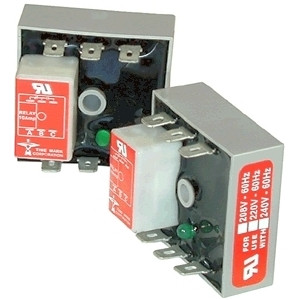

The TimeMark 2581-208 is a 3-phase monitor for 208 V AC, 60 Hz systems. It drops its output relay out on phase loss, phase reversal and undervoltage and resets once the fault clears.
Trip points: undervoltage 189 V AC ±2%, fixed (10% below nominal). Adjustment: fixed, factory set. Trip delay: phase loss / reversal 50 ms (set or reset).
Output: 1C SPDT, 10 A at 240 V AC resistive. Mounting: surface mount, 0.250" quick-connect terminals. Approvals: UL Recognized (U.S. and Canada).
| Category | |
| Manufacturer | TimeMark |
| Model | 2581 |
| Monitoring Function | Phase Loss, Phase Reversal and Undervoltage |
| Number of Phases | 3-Phase |
| Input Voltage | 208V AC |
| Undervoltage Trip Range | 189V AC ±2%, fixed (10% below nominal) |
| Undervoltage Trip Adjustment | Fixed, factory set |
| Trip Delay - Phase Loss and Reversal (ms) | 50 ms (set or reset) |
| Contact Configuration | 1C SPDT |
| Output Rating | 10 A at 240 V AC resistive |
| Number of Poles | 1 |
| Mounting Type | Surface Mount |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Dimensions | 208 to 240V versions: 2.0" x 2.0" x 1.38" (0.75"), .25" dia. hole; 480V version: 2.53" x 2.53" x 1.38" (0.75"), .26" dia. hole |
| Approvals | UL Recognized (U.S. and Canada) |
