Description: Phase Monitor Relays • Nominal Voltage: 208/240VAC • Max Input Voltage: 262VAC • Adjustment Range: 160-240VAC • Power Consumption: 1.5W • Reset: Auto • Frequency : 400Hz • Contact Rating : DPDT 5 amps , 115VAC resistive • Mounting : *11-pin socket (order separately)
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Nominal Voltage | 208/240VAC |
| Max Input Voltage | 262VAC |
| Adjustment Range | 160-240VAC |
| Power Consumption | 1.5W |
| Reset | Auto |
| Frequency | 400Hz |
| Transient Protection | 2500 VRMS for 10ms |
| Repeat Accuracy | ±0.1% of set-point (fixed conditions) |
| Response Time | 0.05 seconds |
| Reset Time | 0.05 seconds |
| Dead Band | 0.02 |
| Contact Rating | DPDT 5 amps , 115VAC resistive |
| Max. Contact Rating | 870 VA, 30VDC, 300VAC |
| Expected Relay Life | Mech: 10 million operations Elec: 100,000 operations at rated load |
| Operating Temp | - 20o to +131o F |
| Humidity Tolerance | 97% w/o condensation |
| Enclosure Material | ABS plastic |
| Mounting | *11-pin socket (order separately) |
| Weight | 5 oz. |
| Series Features |

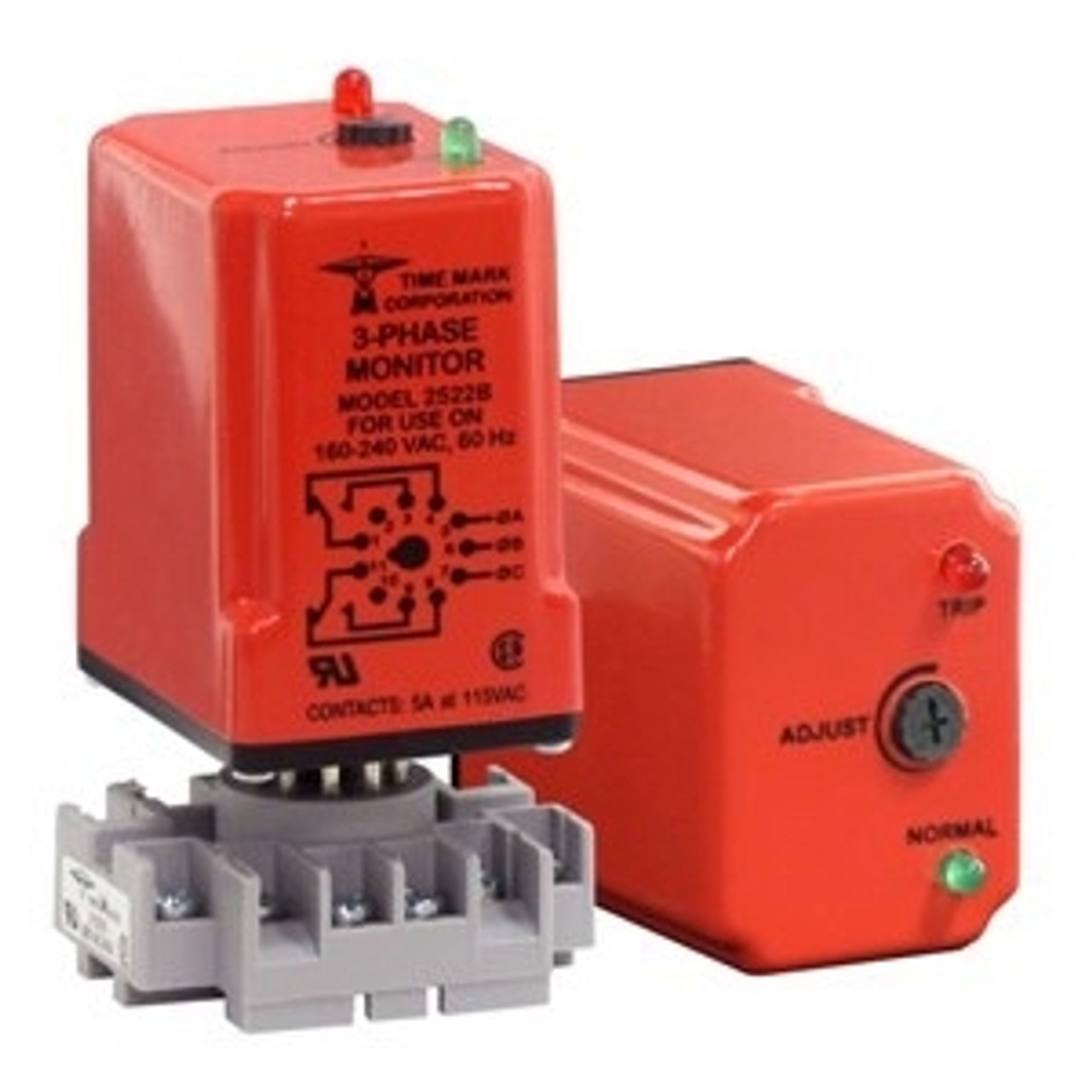

| MODEL 2522 3-Phase Monitor |
| Series Description: The Model 2522 continuously monitors 3-phase power lines for abnormal conditions. When properly adjusted, the Model 2522 will detect phase loss on a loaded motor even when regenerated voltage is present. This unit consists of a solid-state voltage and phase-angle sensing circuit, driving an electromechanical relay with DPDT contacts. When correct voltage and phase rotation are applied, the internal relay will energize. A fault condition will de-energize the relay. When the fault is corrected the Model 2522 will reset. Both automatic and manual reset versions are available. The Model 2522 does not require a neutral connection, and can be used with Wye or Delta systems. Two versions cover 120V, 208/240V, and 60Hz. Adjustment ranges are sufficiently wide to allow for proper adjustment to existing conditions. A failure indicator is provided to aid in adjustment and system troubleshooting. |
|
