Product Description
Description: Phase Monitor Relays • Nominal AC Voltage: 240 • Adjustment Range: 168-229V • Frequency : 50/60Hz • Unbalance adj range : 2 to 10% per NEMA specifications • Trip Delay adj range : 1 to 10 seconds (1 sec increments) • Power Consumption : 4.5W per phase • Output Contacts : DPDT 40 amps at 28VDC/300VAC 50/60Hz 5 amps at 480/600VAC 50/60Hz • Mounting : Surface
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Nominal AC Voltage | 240 |
| Adjustment Range | 168-229V |
| Frequency | 50/60Hz |
| Unbalance adj range | 2 to 10% per NEMA specifications |
| Trip Delay adj range | 1 to 10 seconds (1 sec increments) |
| Power Consumption | 4.5W per phase |
| Repeat Accuracy | ± 1% of full scale |
| Reset Time | 150ms nominal |
| Reset Type | Automatic |
| Dead Band | 2% of full scale |
| Output Contacts | DPDT 40 amps at 28VDC/300VAC 50/60Hz 5 amps at 480/600VAC 50/60Hz |
| Operating Temp | - 4o to +131o F |
| Humidity Tolerance | 0-97% without condensation |
| Enclosure Material | ABS plastic |
| Weight | 2 lbs. 5 oz. |
| Mounting | Surface |
| Agency Approval | UL Listed to U.S. and Canadian safety standards |
| Series Features |

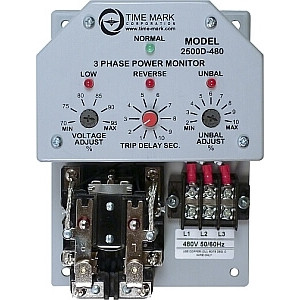

| MODEL 2500D MODEL 2501D 3-Phase Monitor |
| Series Description: The Model 2500D 3-Phase Monitors are designed to continuously monitor the voltages of a 3-phase power distribution system for abnormal conditions. The monitors feature solid-state voltage and phase angle sensing circuits which drive a DPDT electromechanical output relay. Connect to any 3-phase WYE or DELTA with no neutral connection required. When the correct voltage and phase sequence is applied, the output relay will not energize. An under voltage, phase reversal, phase unbalance or phase loss condition will cause the output relay to energize, even if regenerated voltage is present. Complete power loss will not cause the Model 2500D to trip. |
|
