| Manufacturer | TimeMark |
| Manufacturer Product Number | 24 |
| Description | Phase Monitor Relay; 3-Phase; 190-240V AC; 2C DPDT |
| Datasheet | Download Datasheet |

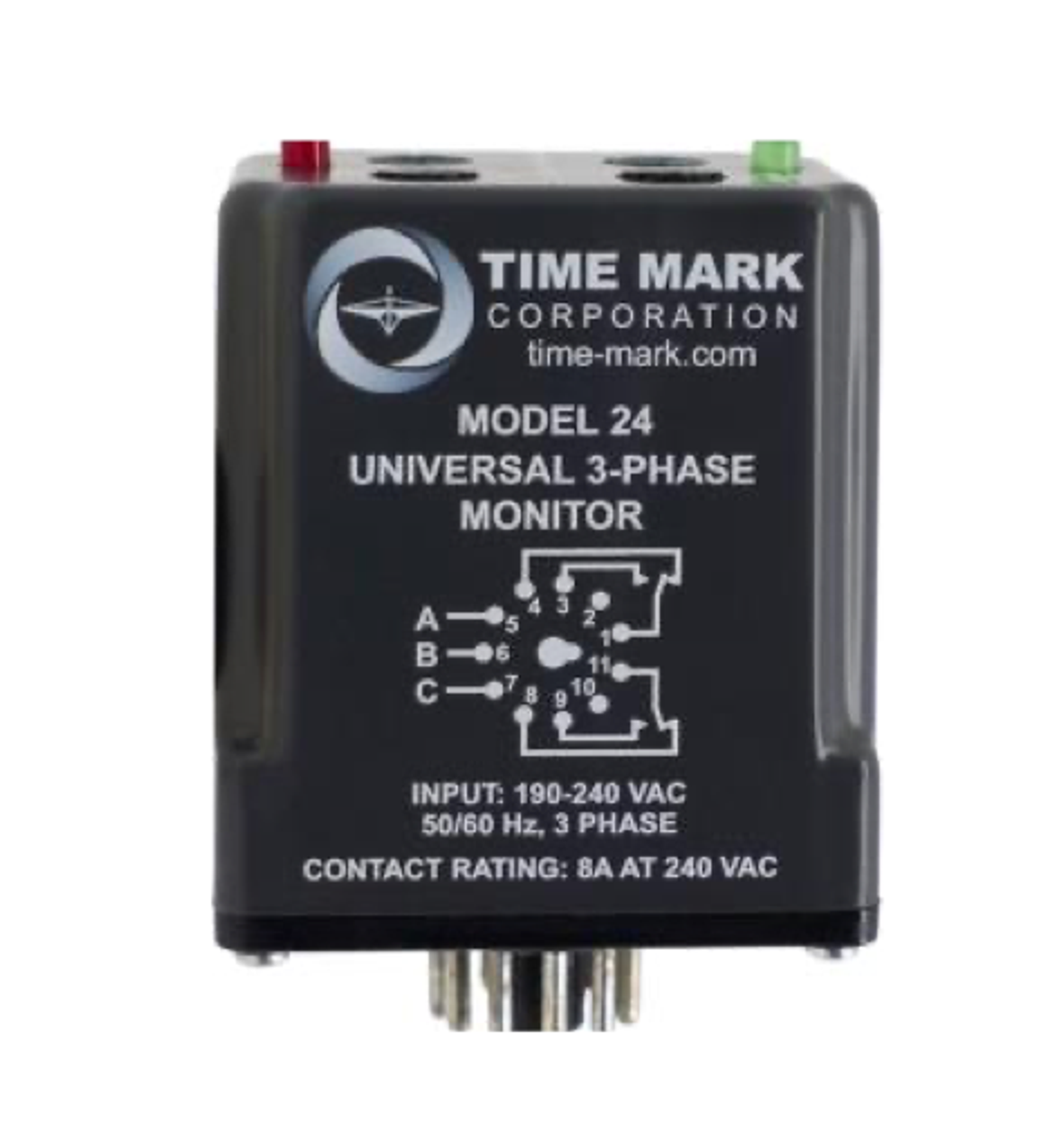

The TimeMark 24 is a 3-phase monitor for 190-240 V AC, 50/60 Hz systems. It drops its output relay out on phase loss, phase reversal, over/under voltage and voltage unbalance and resets once the fault clears.
Trip points: undervoltage 90% of the setting ±1% (resets at 93%); overvoltage 110% of the setting ±1% (resets at 107%); unbalance 2-8% adjustable (resets 0.7% below the setting). Trip delay: undervoltage 1-30 s adjustable (over, under and unbalance); 1 s fixed on single phasing or unbalance over 15%. Restart: 1-500 s (adjustable). Reset: automatic.
Output: 2C DPDT, 8 A at 240 V AC resistive. Mounting: plug-in, on an 11-pin octal (TimeMark 51X016 socket) base. Indicator: Red and green status LEDs (UNDER, OVER, UNBAL/SINGLE PH, REVERSE PHASE on red; RUN, RESTART DELAY on green).
