| Specifications |
| Product Attribute | Attribute Value |
| Operating Voltage | 475-600 VAC |
| Power Consumption | 4.5W@600V |
| Auto Ranges | No |
| Frequency | 50/60Hz |
| Type of Measurement | RMS |
| Under Voltage (% of setpoint) | Trip: 90% ±1% Reset: 93% ±1% |
| Over Voltage (% of setpoint) | Trip: 110% ±1% Reset: 107% ±1% |
| Voltage Unbalance (conforms to NEMA) | Trip: 2-8%, adjustable Reset: Trip setting minus 0.7% |
| Trip Delay Time | Over, Under, & Unbalanced: 1-30 sec., adjustable Single-Phasing Faults: 1 sec., fixed Unbalance > 15%: 1 sec., fixed |
| Reset Type | Automatic |
| Output Contacts | 1 SPDT 1 SPST (N.O.) 8A at 240VAC resistive |
| Operating Temp | - 20º to +140º F |
| Humidity Tolerance | 0-97% w/o condensation |
| Enclosure | Noryl plastic |
| Mounting | 8-Pin Socket (**sold separately) |
| Low Current Options | Models ordered with suffix /SG have silver with gold flash contacts |
| Series Features |

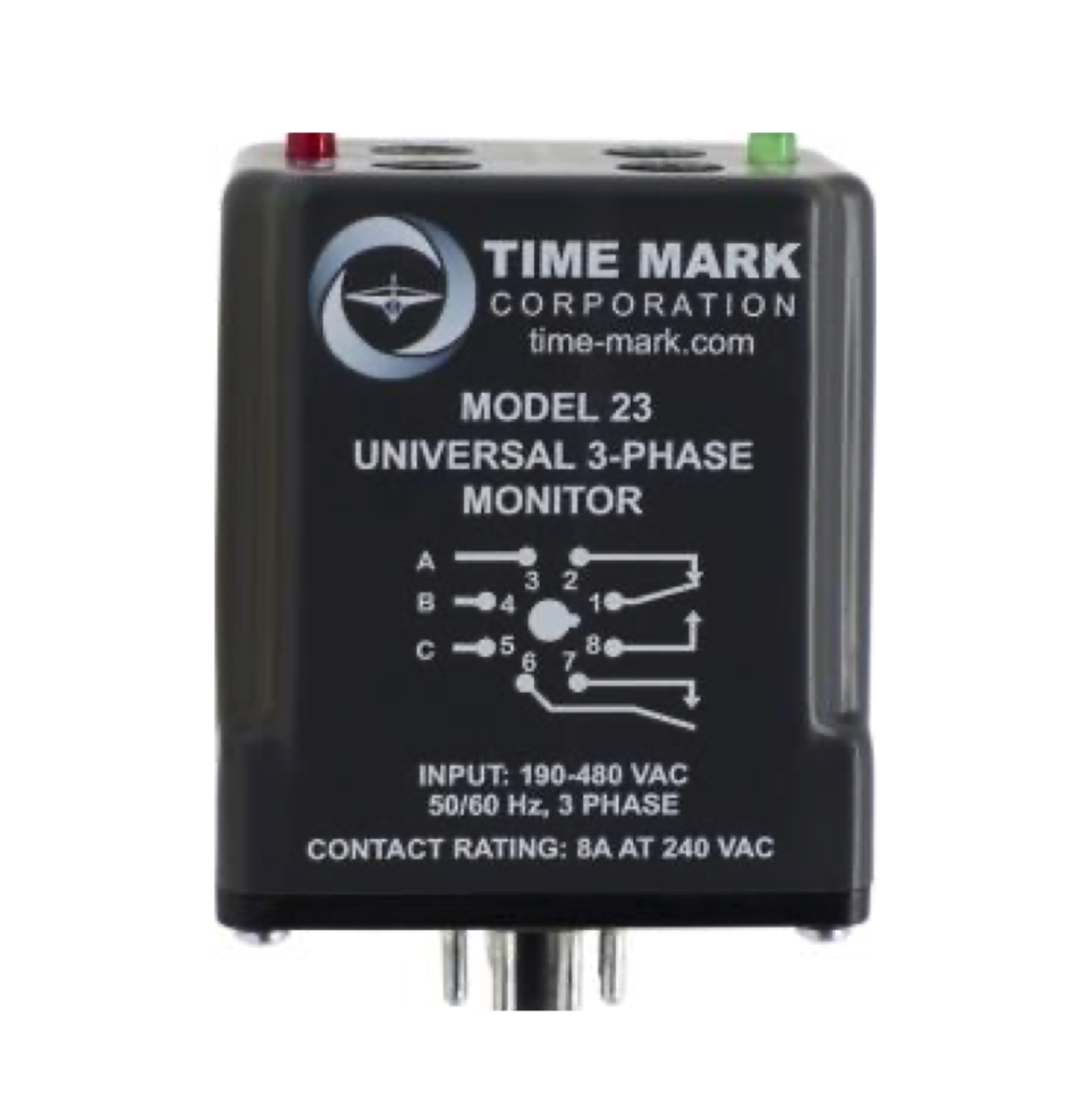

| MODEL 23 3-Phase Monitor with Adjustable Trip & Restart Delays |
| Series Description: The Model 23 is a microcontroller-based universal 3-phase monitor for protecting 3-phase motors from abnormal power conditions. It can detect under voltage, over voltage, voltage unbalance, reverse phase, and single-phasing even when regenerated voltage is present. The Model 23 includes adjustable trip and restart delays to prevent nuisance tripping during power fluctuations and short cycling in compressor applications. The LED status indicators and adjustment pots for Voltage Adjustment, % Unbalance, Restart Delay and Trip Delay are mounted on the front of the unit for easy access. The Model 23 has 2 contacts (1 SPDT, 1 Normally Open SPST). It can be used on either Wye or Delta systems and does not require a neutral connection. All versions of the Model 23 are available with optional flashed silver contacts for low current applications. |
|
