Product Description
|
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Input | 120VAC |
| Output VDC Regulated | 24/12VDC |
| Output VDC Unregulated (Loaded) | 32VDC |
| Operating frequency | 60Hz |
| Power consumption | 6 watts maximum |
| Maximum combined current | 150mA |
| Operating temperature | -20° to +50º C |
| Humidity tolerance | 0-97% w/o condensation |
| Enclosure material | ABS plastic |
| Mounting | 8-pin socket (*order separately) |
| Series Features |

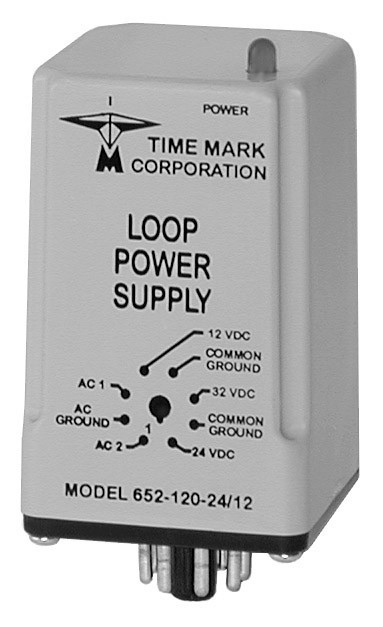

| MODEL 652 Loop Power Supply |
| Series Description: The Model 652 Loop Power Supply provides DC power for instrumentation control modules. Each option provides three output selections as shown in the table below. For example the Model 652-120-12 has output options of 12VDC regulated, 16VDC unregulated, and 5VDC regulated. All outputs for the Model 652 are floating, electrically isolated from ground. A power status indicator (LED) is located on the top of the unit. The POWER LED comes ON when power is applied. Applications for this device include two-wire loop transducers (pressure, voltage, or current), alarm indicators, meters and timers. |
|
