| Manufacturer | TimeMark |
| Manufacturer Product Number | 275-5-120-M |
| Description | Current Monitor Relay; Overcurrent; 1-5 A AC; 120V AC; 0.2...20 s (adjustable) |
| Datasheet | Download Datasheet |

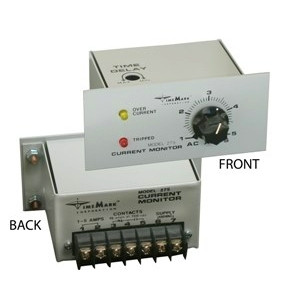

The TimeMark 275-5-120-M is an overcurrent monitor for 1-5 A AC. Its relay transfers when the current stays above the set level for longer than the time delay.
Sensing: direct 1-5 A; external CT above 5 A (TimeMark 276). Control supply: 120 V AC. Trip point: 1-5 A (dial). Hysteresis: 1% max. Accuracy: 1% max. Trip delay: 0.2-20 s (adjustable). Reset: manual.
Output: 1C SPDT, 10 A at 240 V AC resistive. Mounting: panel mount (4-40 studs). Indicator: OVER CURRENT and TRIPPED. It operates from -29 to +55 °C.
| Category | |
| Manufacturer | TimeMark |
| Model | 275 |
| Monitoring Function | Overcurrent |
| Sensor Type | Direct 1-5 A; external CT above 5 A (TimeMark 276) |
| Current Range | 1-5 A AC |
| Pickup Current Setting | 1-5 A (dial) |
| Input Voltage | 120V AC |
| Trip Delay | 0.2...20 s (adjustable) |
| Setting Accuracy | 1% max |
| Hysteresis | 1% max |
| Reset Method | Manual |
| Status Indicator | OVER CURRENT and TRIPPED |
| Contact Configuration | 1C SPDT |
| Number of Poles | 1 |
| Output Rating | 10 A at 240 V AC resistive |
| Mounting Type | Panel Mount (4-40 studs) |
| Rated Power | 1 W max |
| Operating Temperature (Storage) (°C) | -29...+55 |
