Product Description
Description: Monitors • Current Monitor Relays • Function: 3-Phase/Over Current/Under Current • Supply voltage: 190-250VAC • Max supply voltage: 260V • Power consumption : 1.5 Watts max. • Frequency range : 50/60 Hz • Input current : 1-5 amps ±5% • Contact rating : DPDT 10A at 240VAC resistive
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Function | 3-Phase/Over Current/Under Current |
| Supply voltage | 190-250VAC |
| Max supply voltage | 260V |
| Power consumption | 1.5 Watts max. |
| Transient protection | 2500 VRMS for 10ms |
| Frequency range | 50/60 Hz |
| Input current | 1-5 amps ±5% |
| Max. input current | 40 amps for 2 sec |
| Current range | 1-5 amps ± 5% |
| Trip delay | 0.2to20sec ±5% |
| Dead band | 4% max. |
| Contact rating | DPDT 10A at 240VAC resistive |
| Expected relay life | Mech: 10 million operations Elec: 100,000 ops at rated load |
| Operating temperature | - 20o to +131o F |
| Enclosure material | ABS plastic |
| Weight | 1 lb. 5.9 oz. |
| Series Features |

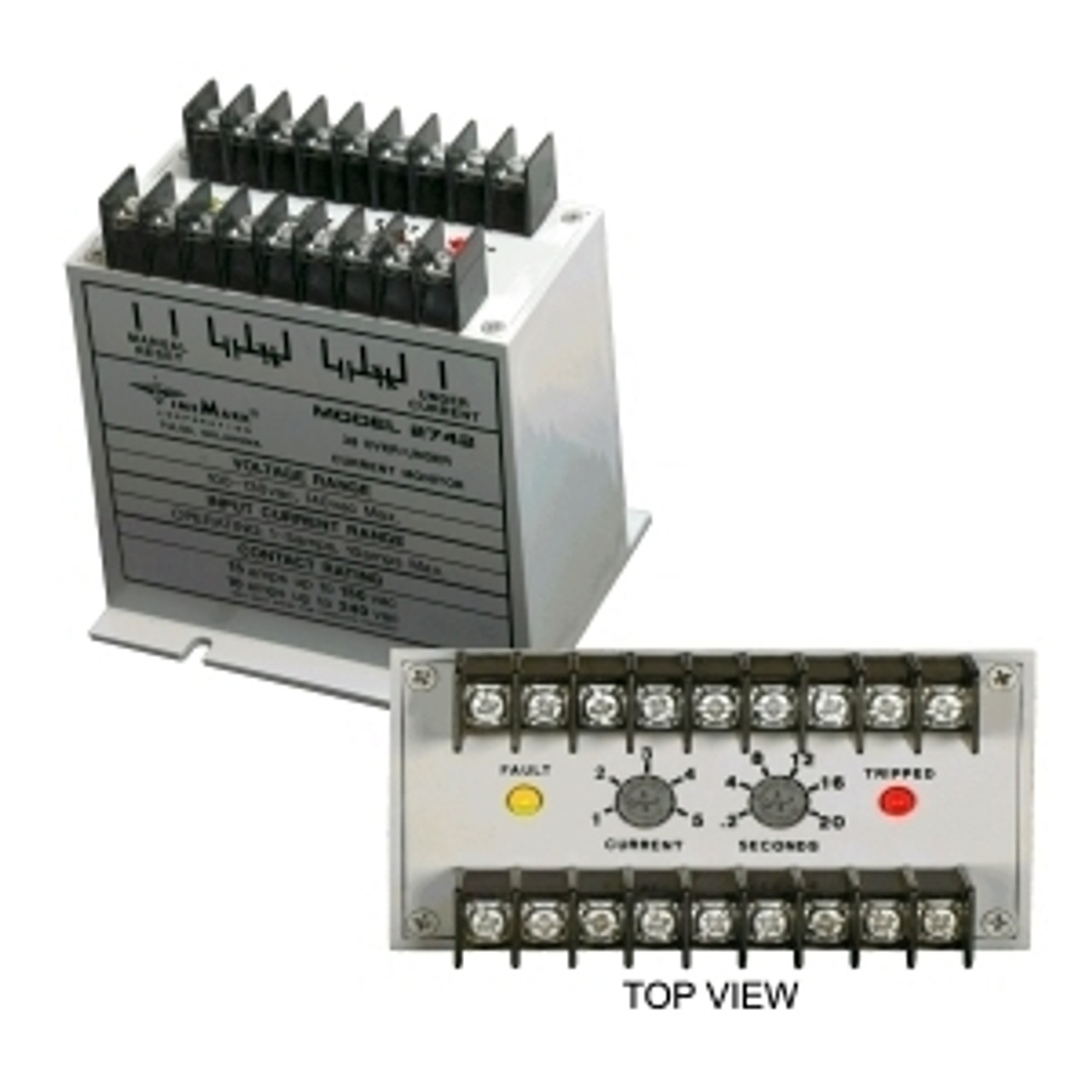

| MODEL 2742 3-Phase Over/Under Current Monitor |
| Series Description: The Model 2742 3-Phase Over/Under Current Monitor is designed to monitor the current level of a 3-phase line or to compare the currents of three single-phase lines. The Model 2742 is factory-set as an over-current monitor; that is, if one or more current inputs rises above the trip level, the internal relay will de-energize. Adding a wire between the UNDER CURRENT terminals on the case will cause the Model 2742 to sense a decrease of one or more current inputs. An adjustable trip delay of 0.2 to 20 seconds will prevent nuisance tripping. The current trip point is adjustable from 1 to 5 amps, and matching current transformers are available to extend the current range of the monitor. The Model 2742 will automatically reset when the current fault is corrected. An external manual reset can be added by installing a normally closed switch between the terminals marked RESET. |
|
