To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | TimeMark |
| Manufacturer Product Number | 27 |

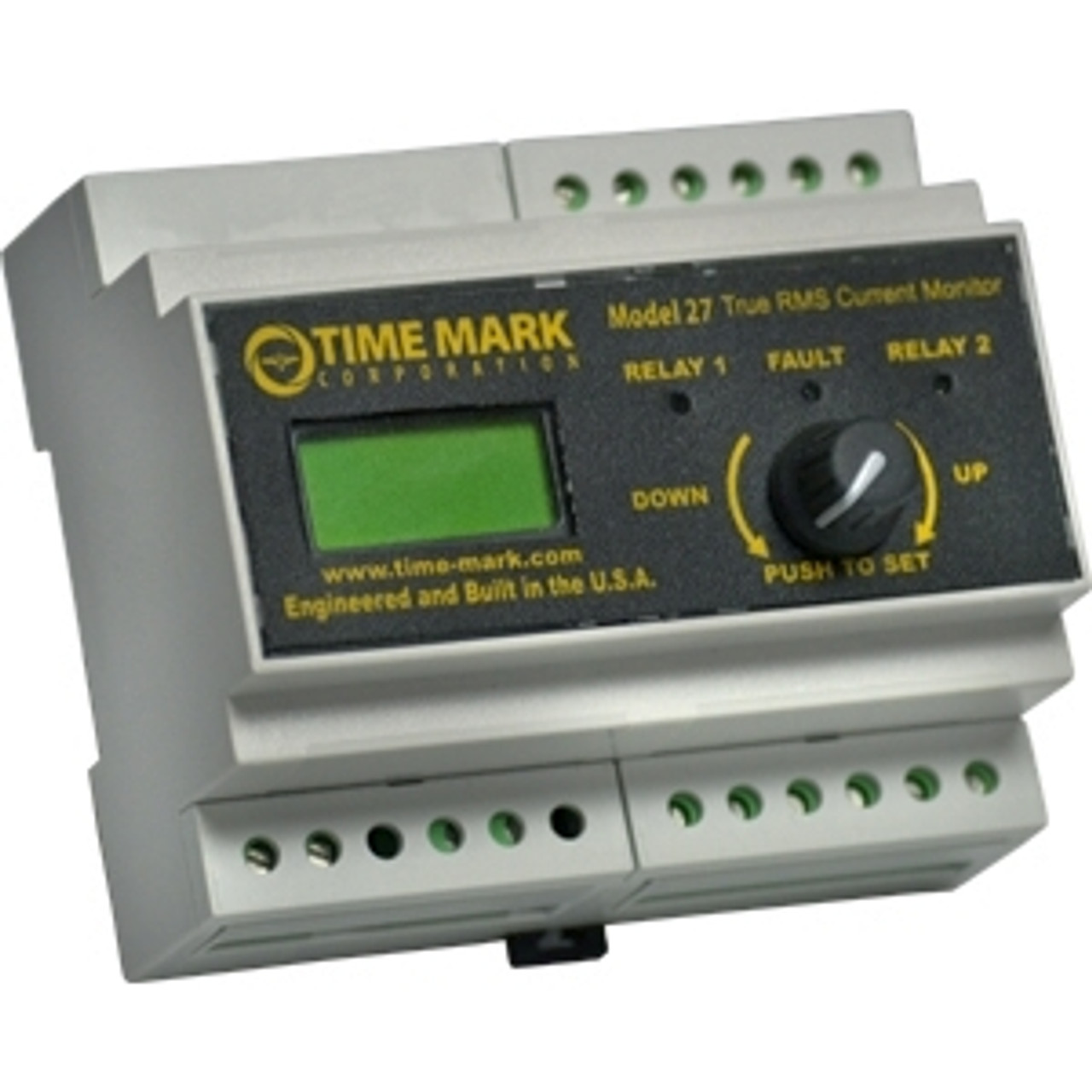

| Description | Current Monitor Relay; True RMS Current; EXT:0.5A-1200A/0.5A-5AatTerm |
| Datasheet | Download Datasheet |
Monitor • Current Monitor Relay • Function: True RMS Current • Input AC Current Range: 0.5A - 1200A with External CT
0.5A - 5A@Terminals • InputA: 5A • Input Frequency: 50/60Hz (400Hz optional with jumper) • Input DC Power : 24 Volts, 2 watts • Output: 240V AC, 10A, Resistive
120V AC, 4A, General Use
240V AC, 2A, General Use
C300, Pilot Duty • Max Voltage on Current Terminals : 600V • Output Contacts : x 2 10A @ 240VAC • Mounting : DIN Rail 35mm
| Category | |
| Manufacturer | TimeMark |
