Product Description

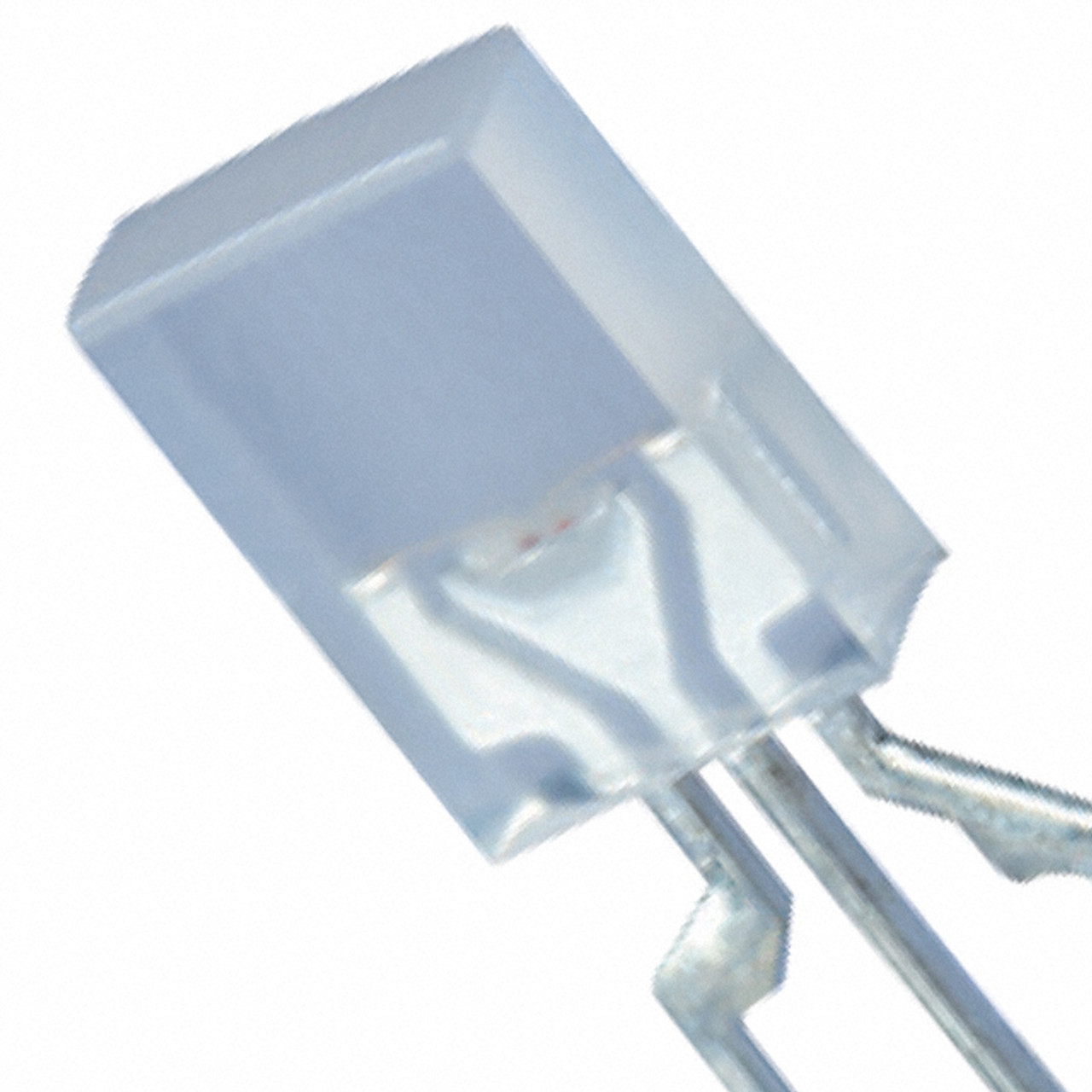

SunLED XSxxxx47M Series Thru Hole LED; Bi-color Rectangular; Red, Yellow; Diffused; White; 2V Red, 2.1V Yellow; Radial - 3 Leads; -
Thru Hole LED • Color: Red, Yellow • Lens Color: White • Lens Transparency: Diffused • Lens Style: Rectangle with Flat Top • Lens Size: 5.00mm x 2.00mm • Voltage - Forward (Vf) (Typ): 2V Red, 2.1V Yellow • Wavelength - Dominant: 617nm Red, 588nm Yellow • Features: -
Product Information
| Manufacturer | SunLED |
| Product Category | LED |
| Product Sub Category | Thru Hole LED |
| Series | XSxxxx47M Series |
| Catalog Part Number | XSUYR47M |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Color | Red, Yellow |
| Configuration | Common Cathode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 9mcd Red, 6mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.1V Yellow |
| Current - Test | 20mA Red, 20mA Yellow |
| Viewing Angle | 110° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 617nm Red, 588nm Yellow |
| Wavelength - Peak | 627nm Red, 590nm Yellow |
| Features | - |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | Bi-color Rectangular |
| Size / Dimension | - |
| Height (Max) | 7.00mm |
