To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XSCGS23MB |
| Description | Through Hole LED; Blue-Green; ICE CUBE LED; 505 nm; 148 mcd; 110°; White Triple |
| Datasheet | Download Datasheet |

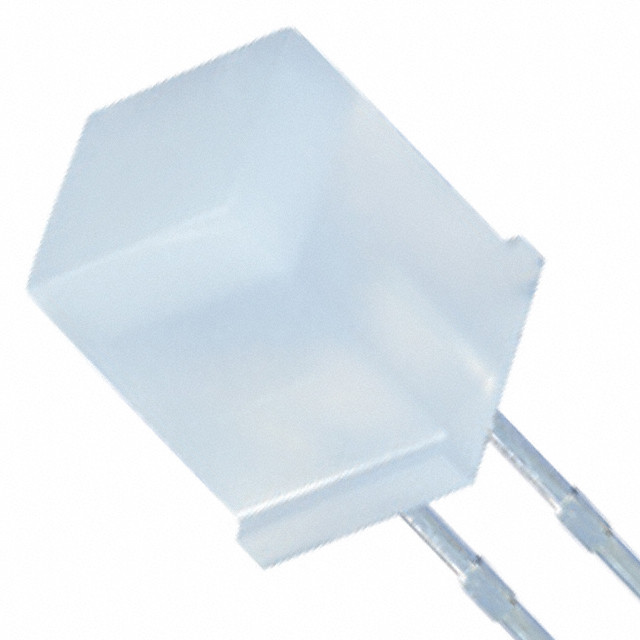

The SunLED XSCGS23MB is a blue-green through hole LED in a ICE CUBE LED package, with a peak wavelength of 505 nm.
It is rated 148 mcd typical (70 mcd minimum) at 20 mA, with a forward voltage of 3.2 V (3.8 V maximum).
Its white triple lens gives a 110° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Part Status | Discontinued |
| Color | Blue-Green |
| Configuration | Single Color |
| Peak Wavelength (nm) | 505 |
| Dominant Wavelength (nm) | 505 |
| Luminous Intensity (mcd) | 148 |
| Luminous Intensity (Min) (mcd) | 70 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 3.2 |
| Forward Voltage (Max) (V) | 3.8 |
| Viewing Angle (°) | 110 |
| Lens | White Triple |
| Package Size | ICE CUBE LED |
| Mounting Type | Through Hole |
| Lens Style | Square with Flat Top |
| Lens Size | 5.00mm |
| Height (Max) (mm) | 7.2 |
| Emitting Material | InGaN |
| Forward Current (Max) (mA) | 25 |
| Power Dissipation (mW) | 95 |
| Operating Temperature (°C) | -40°C ~ +85°C |
