To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XLVG65D |
| Description | Through Hole LED; Green; 3mm; 574 nm; 138 mcd; 60°; Green Diffused |
| Datasheet | Download Datasheet |

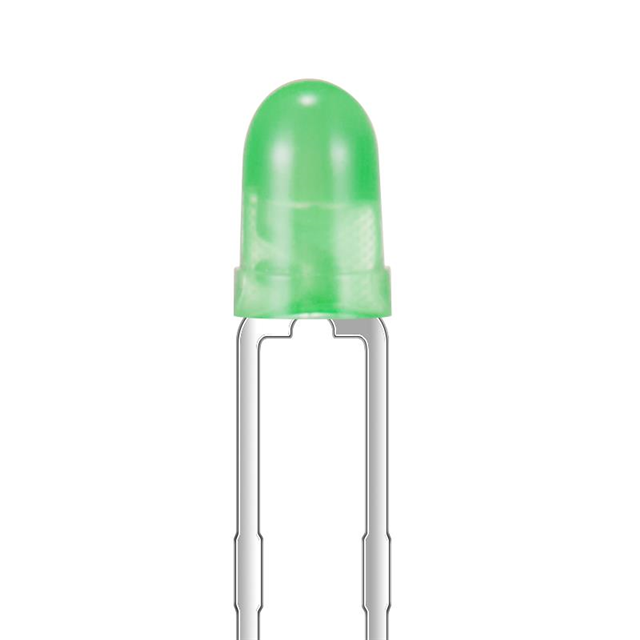

The SunLED XLVG65D is a green through hole LED in a T-1 (3mm) package, with a peak wavelength of 574 nm.
It is rated 138 mcd typical (60 mcd minimum) at 20 mA, with a forward voltage of 2.1 V (2.5 V maximum).
Its green diffused lens gives a 60° viewing angle.
It is halogen free, and operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Part Status | Discontinued |
| Color | Green |
| Configuration | Single Color |
| Peak Wavelength (nm) | 574 |
| Dominant Wavelength (nm) | 570 |
| Luminous Intensity (mcd) | 138 |
| Luminous Intensity (Min) (mcd) | 60 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 2.1 |
| Forward Voltage (Max) (V) | 2.5 |
| Viewing Angle (°) | 60 |
| Lens | Green Diffused |
| Package Size | T-1 (3mm) |
| Mounting Type | Through Hole |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
| Height (Max) (mm) | 6.45 |
| Emitting Material | AlGaInP |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 75 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Features | Halogen Free |
