To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XLUY13D |
| Description | Through Hole LED; Yellow; 2mm Flat Top; 590 nm; 7 mcd; 50°; Yellow Diffused |
| Datasheet | Download Datasheet |

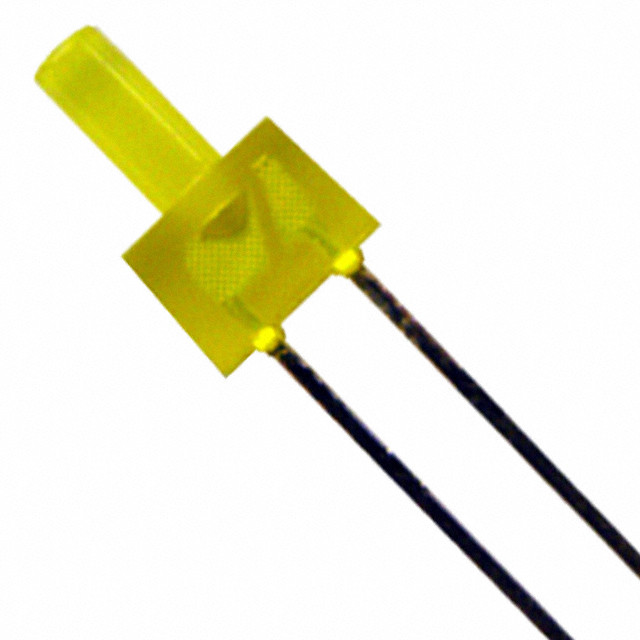

The SunLED XLUY13D is a yellow through hole LED in a 2mm Flat Top package, with a peak wavelength of 590 nm.
It is rated 7 mcd typical (4 mcd minimum) at 10 mA, with a forward voltage of 1.95 V (2.4 V maximum).
Its yellow diffused lens gives a 50° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Yellow |
| Configuration | Single Color |
| Peak Wavelength (nm) | 590 |
| Dominant Wavelength (nm) | 588 |
| Luminous Intensity (mcd) | 7 |
| Luminous Intensity (Min) (mcd) | 4 |
| Test Current (mA) | 10 |
| Forward Voltage (V) | 1.95 |
| Forward Voltage (Max) (V) | 2.4 |
| Viewing Angle (°) | 50 |
| Lens | Yellow Diffused |
| Package Size | 2mm Flat Top |
| Mounting Type | Through Hole |
| Lens Style | Round with Flat Top |
| Lens Size | 2.00mm Dia |
| Height (Max) (mm) | 8 |
| Emitting Material | GaAsP/GaP |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 75 |
| Operating Temperature (°C) | -40°C ~ +85°C |
