To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XLUR12D |
| Description | Through Hole LED; Red; 5mm Round; 627 nm; 39 mcd; 30°; Red Diffused |
| Datasheet | Download Datasheet |

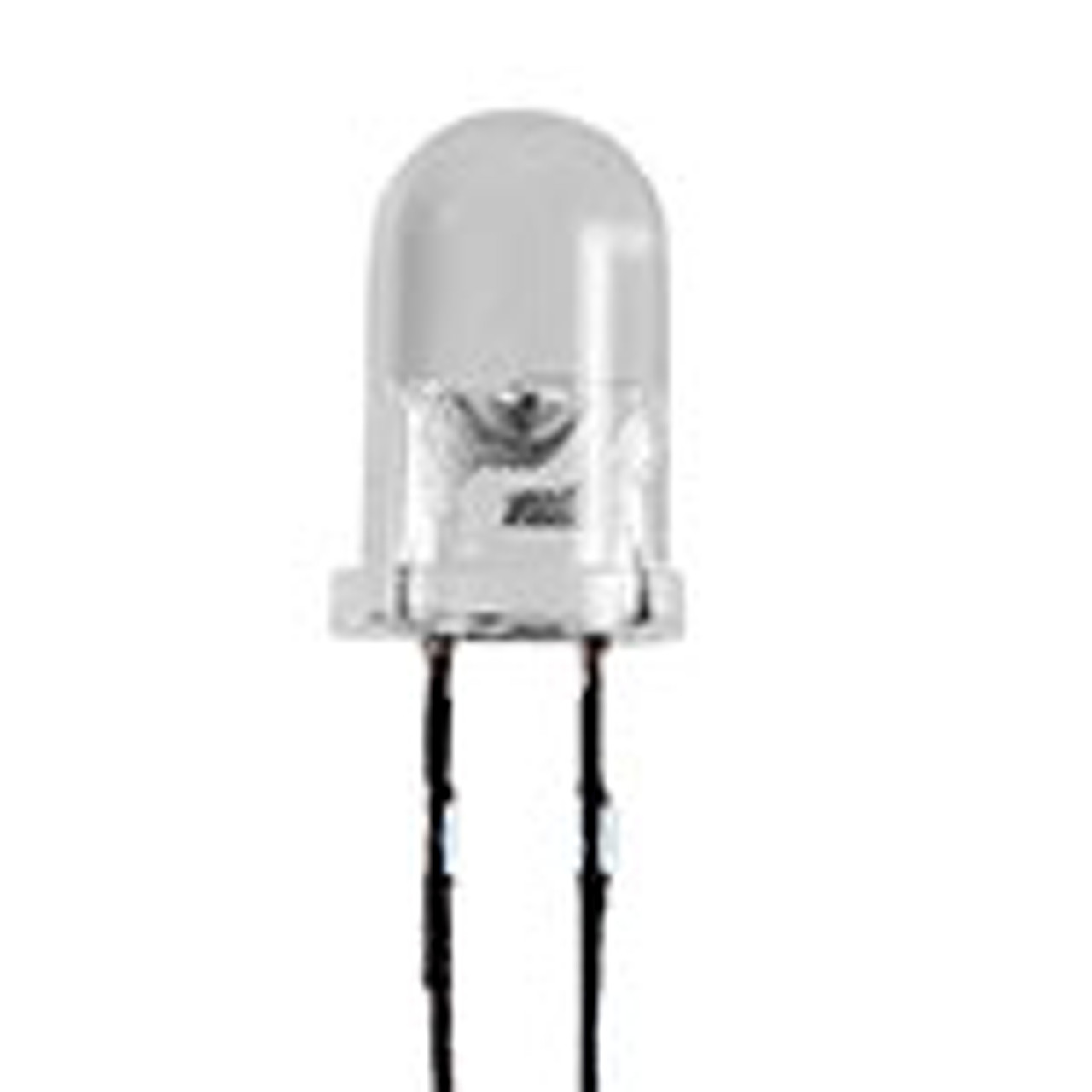

The SunLED XLUR12D is a red through hole LED in a 5mm Round package, with a peak wavelength of 627 nm.
It is rated 39 mcd typical (18 mcd minimum) at 10 mA, with a forward voltage of 1.9 V (2.3 V maximum).
Its red diffused lens gives a 30° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Red |
| Configuration | Single Color |
| Peak Wavelength (nm) | 627 |
| Dominant Wavelength (nm) | 617 |
| Luminous Intensity (mcd) | 39 |
| Luminous Intensity (Min) (mcd) | 18 |
| Test Current (mA) | 10 |
| Forward Voltage (V) | 1.9 |
| Forward Voltage (Max) (V) | 2.3 |
| Viewing Angle (°) | 30 |
| Lens | Red Diffused |
| Package Size | 5mm Round |
| Mounting Type | Through Hole |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Height (Max) (mm) | 8.6 |
| Emitting Material | GaAsP/GaP |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 75 |
| Operating Temperature (°C) | -40°C ~ +85°C |
