To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XLUGY59M |
| Description | Through Hole LED; Green / Yellow; 5mm Round; 565 / 590 nm; 98 / 39 mcd; 30° |
| Datasheet | Download Datasheet |

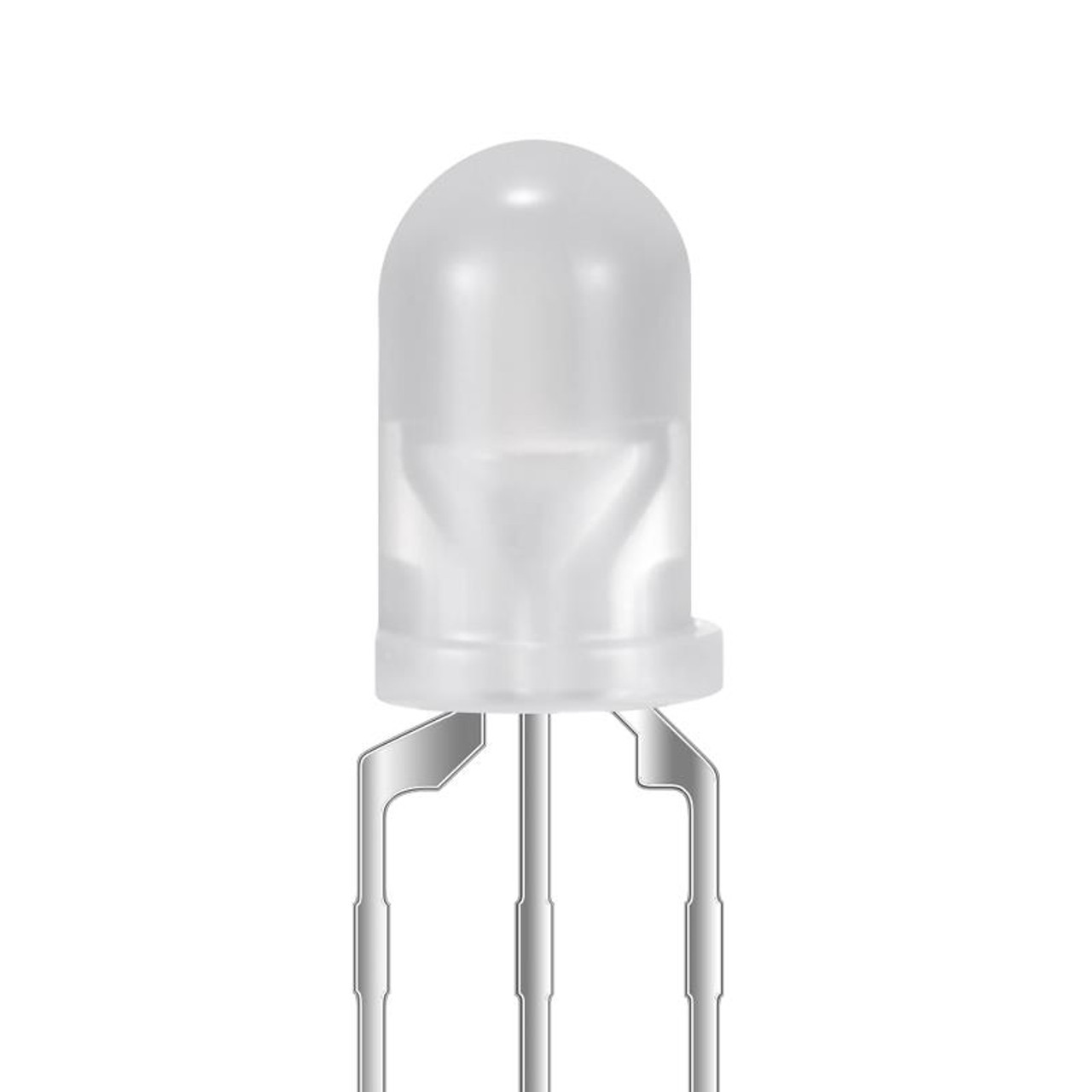

The SunLED XLUGY59M is a bi-color green / yellow through hole LED in a 5mm Round package, with a peak wavelength of 565 nm green and 590 nm yellow.
It is rated 98 mcd green and 39 mcd yellow typical (50 mcd green and 20 mcd yellow minimum) at 20 mA, with a forward voltage of 2.2 V green and 2.1 V yellow.
Its white diffused lens gives a 30° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Green / Yellow |
| Configuration | Bi-Color |
| Peak Wavelength (nm) | 565 / 590 |
| Dominant Wavelength (nm) | 568 / 588 |
| Luminous Intensity (mcd) | 98 / 39 |
| Luminous Intensity (Min) (mcd) | 50 / 20 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 2.2 / 2.1 |
| Forward Voltage (Max) (V) | 2.5 / 2.5 |
| Viewing Angle (°) | 30 |
| Lens | White Diffused |
| Package Size | 5mm Round (Bi-Color) |
| Mounting Type | Through Hole |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Height (Max) (mm) | 8.6 |
| Emitting Material | GaP / GaAsP/GaP |
| Forward Current (Max) (mA) | 25 / 30 |
| Power Dissipation (mW) | 62.5 / 75 |
| Operating Temperature (°C) | -40°C ~ +85°C |
