To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XLMOK12W |
| Description | Through Hole LED; Orange; 5mm Round; 610 nm; 2090 mcd; 20°; Water Clear |
| Datasheet | Download Datasheet |

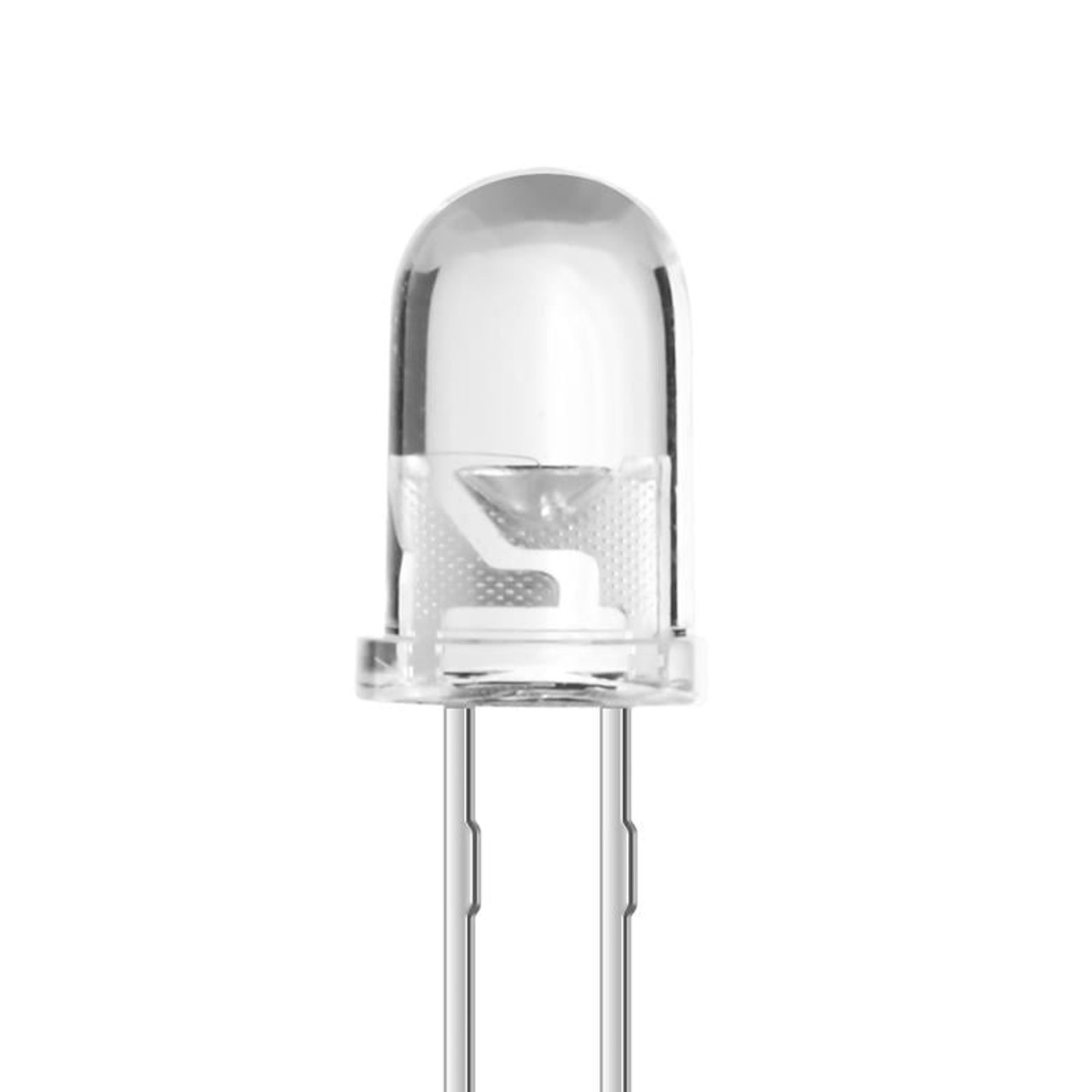

The SunLED XLMOK12W is an orange through hole LED in a 5mm Round package, with a peak wavelength of 610 nm.
It is rated 2090 mcd typical (1300 mcd minimum) at 20 mA, with a forward voltage of 2.1 V (2.5 V maximum).
Its water clear lens gives a 20° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Orange |
| Configuration | Single Color |
| Peak Wavelength (nm) | 610 |
| Dominant Wavelength (nm) | 605 |
| Luminous Intensity (mcd) | 2090 |
| Luminous Intensity (Min) (mcd) | 1300 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 2.1 |
| Forward Voltage (Max) (V) | 2.5 |
| Viewing Angle (°) | 20 |
| Lens | Water Clear |
| Package Size | 5mm Round |
| Mounting Type | Through Hole |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Height (Max) (mm) | 8.6 |
| Emitting Material | AlGaInP |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 75 |
| Operating Temperature (°C) | -40°C ~ +85°C |
