Product Description

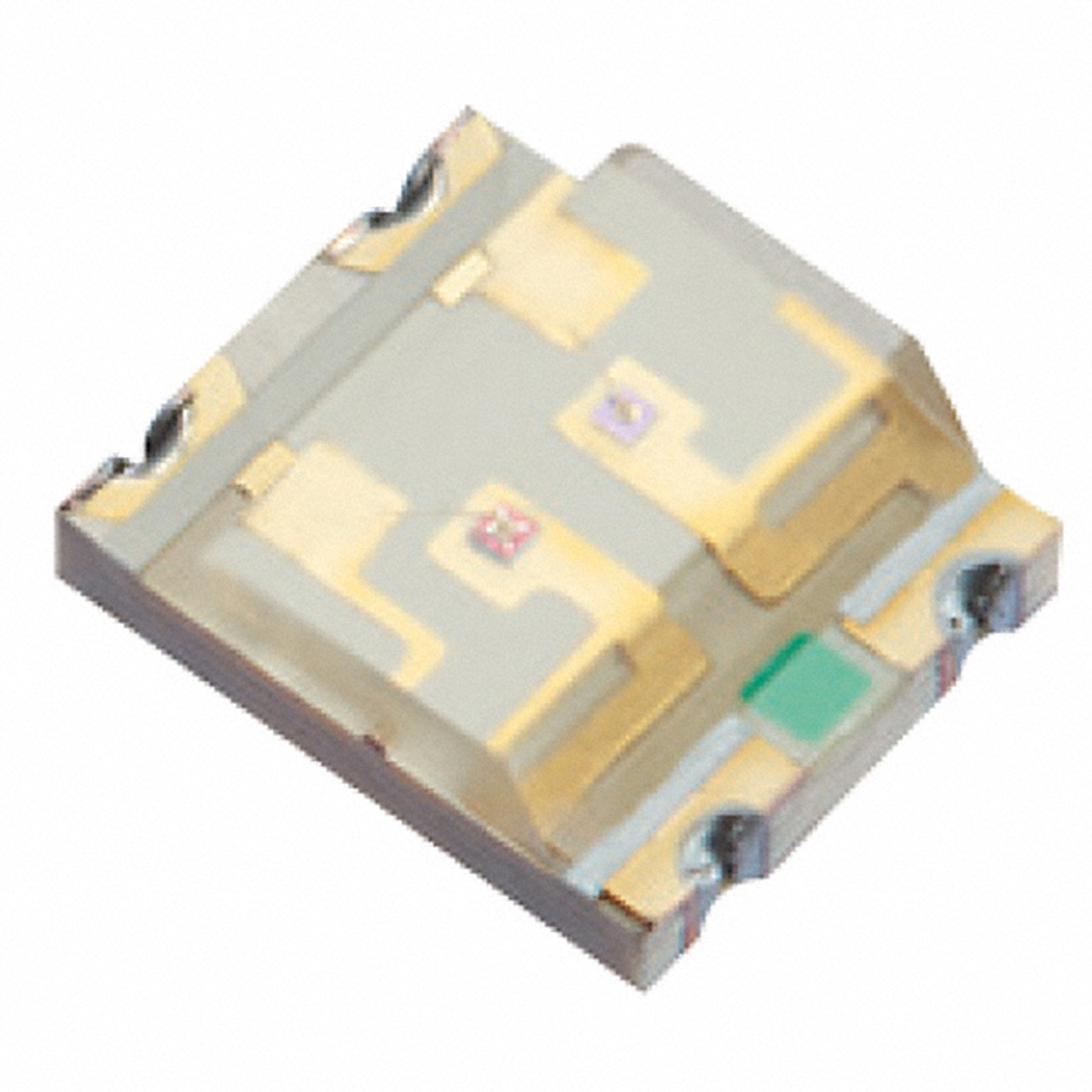

SunLED XZxxxx57W Series Surface Mount LED; 4-SMD; 568nm Green, 617nm Red; ; Clear; Colorless; Rectangle with Flat Top; 2.2V Green, 2V Red
Surface Mount LED • Color: Green, Red • Lens Color: Colorless • Lens Transparency: Clear • Lens Style: Rectangle with Flat Top • Lens Size: 1.50mm x 2.50mm • Voltage - Forward (Vf) (Typ): 2.2V Green, 2V Red • Wavelength - Dominant: 568nm Green, 617nm Red • Package / Case: 1210 (3225 Metric) • Size / Dimension: 3.00mm L x 2.50mm W
Product Information
| Manufacturer | SunLED |
| Product Category | LED |
| Product Sub Category | Surface Mount LED |
| Series | XZxxxx57W Series |
| Catalog Part Number | XZURMG57W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 14mcd Green, 7mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 2.50mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 568nm Green, 617nm Red |
| Wavelength - Peak | 565nm Green, 627nm Red |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Height (Max) | 1.10mm |
