To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XZMG56W |
| Description | Surface Mount LED; Green; 1104; 565 nm; 11 mcd; 120°; Water Clear |
| Datasheet | Download Datasheet |

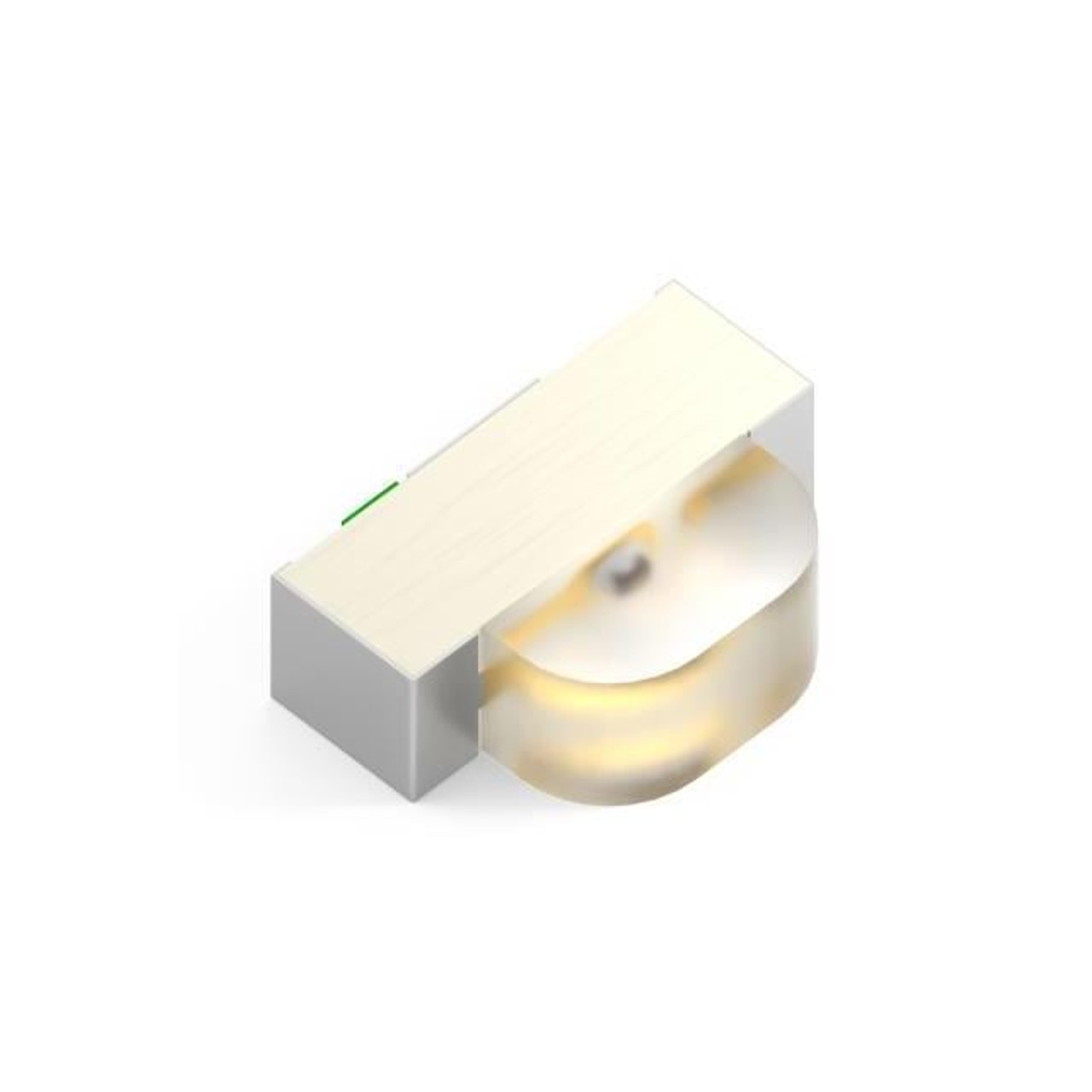

The SunLED XZMG56W is a green right-angle surface mount LED in a 3.0x1.0x2.0mm (1104) package, with a peak wavelength of 565 nm.
It is rated 11 mcd typical (5 mcd minimum) at 20 mA, with a forward voltage of 2.2 V (2.5 V maximum).
Its water clear lens gives a 120° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Green |
| Configuration | Single Color |
| Peak Wavelength (nm) | 565 |
| Dominant Wavelength (nm) | 568 |
| Luminous Intensity (mcd) | 11 |
| Luminous Intensity (Min) (mcd) | 5 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 2.2 |
| Forward Voltage (Max) (V) | 2.5 |
| Viewing Angle (°) | 120 |
| Lens | Water Clear |
| Package Size | 3.0x1.0x2.0mm (1104 Right Angle LED) |
| Mounting Type | Surface Mount, Right Angle |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Height (Max) (mm) | 1 |
| Emitting Material | GaP |
| Forward Current (Max) (mA) | 25 |
| Power Dissipation (mW) | 62.5 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Moisture Sensitivity Level | 3 |
