| Manufacturer | SunLED |
| Manufacturer Product Number | XZMDKCBD55W-8 |
| Description | Surface Mount LED; Red / Blue; 1206; 645 / 460nm; 597 / 248mcd; 30°; Water Clear |
| Datasheet | Download Datasheet |

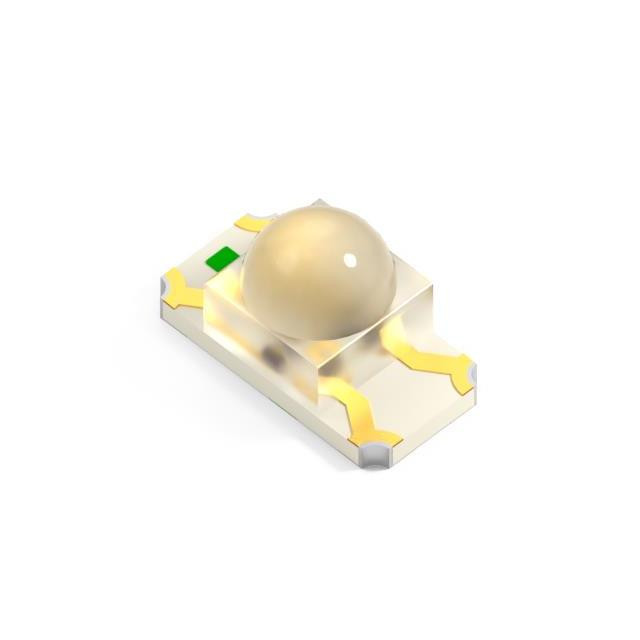

The SunLED XZMDKCBD55W-8 is a bi-color red / blue surface mount LED in a 3.2x1.6x1.8mm (1206) package, with a peak wavelength of 645 nm red and 460 nm blue.
It is rated 597 mcd red and 248 mcd blue typical (300 mcd red and 120 mcd blue minimum) at 20 mA, with a forward voltage of 1.95 V red and 3.3 V blue.
Its water clear lens gives a 30° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Red / Blue |
| Configuration | Bi-Color |
| Peak Wavelength (nm) | 645 / 460 |
| Dominant Wavelength (nm) | 630 / 465 |
| Luminous Intensity (mcd) | 597 / 248 |
| Luminous Intensity (Min) (mcd) | 300 / 120 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 1.95 / 3.3 |
| Forward Voltage (Max) (V) | 2.5 / 4 |
| Viewing Angle (°) | 30 |
| Lens | Water Clear |
| Package Size | 3.2x1.6x1.8mm (1206 Bi-Color Dome Lens LED) |
| Mounting Type | Surface Mount |
| Lens Style | Round with Domed Top |
| Lens Size | 1.60mm Dia |
| Height (Max) (mm) | 1.8 |
| Emitting Material | AlGaInP / InGaN |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 75 / 120 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Moisture Sensitivity Level | 3 |
