Product Description

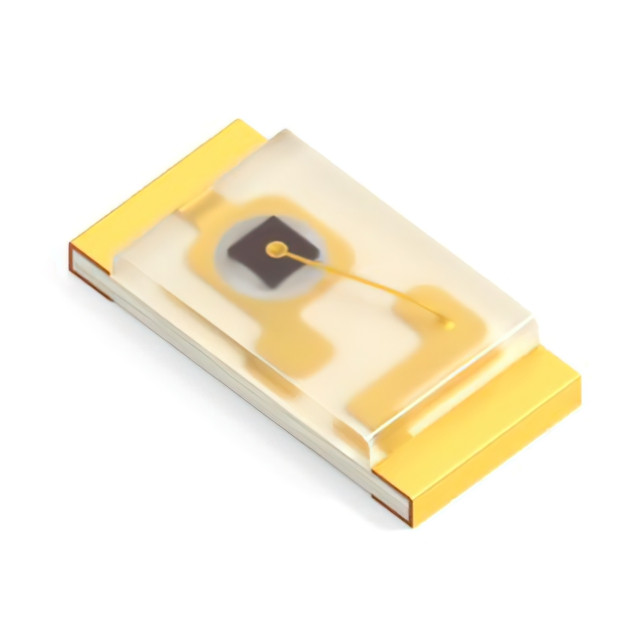

SunLED XZxx53W-6 Series Surface Mount LED; 603; 525nm; ; Clear; Colorless; Rectangle with Flat Top; 3.2V
Surface Mount LED • Color: Green • Lens Color: Colorless • Lens Transparency: Clear • Lens Style: Rectangle with Flat Top • Lens Size: 1.20mm x 0.80mm • Voltage - Forward (Vf) (Typ): 3.2V • Wavelength - Dominant: 525nm • Package / Case: 0603 (1608 Metric) • Size / Dimension: 1.60mm L x 0.80mm W
Product Information
| Manufacturer | SunLED |
| Product Category | LED |
| Product Sub Category | Surface Mount LED |
| Series | XZxx53W-6 Series |
| Catalog Part Number | XZM2DG53W-6 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Color | Green |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 955mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 525nm |
| Wavelength - Peak | 520nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.28mm |
