To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XZM2CYK50W-2RP |
| Description | Surface Mount LED; Yellow; 2-SMD; 590 nm; 6990 mcd; 10°; Water Clear |
| Datasheet | Download Datasheet |

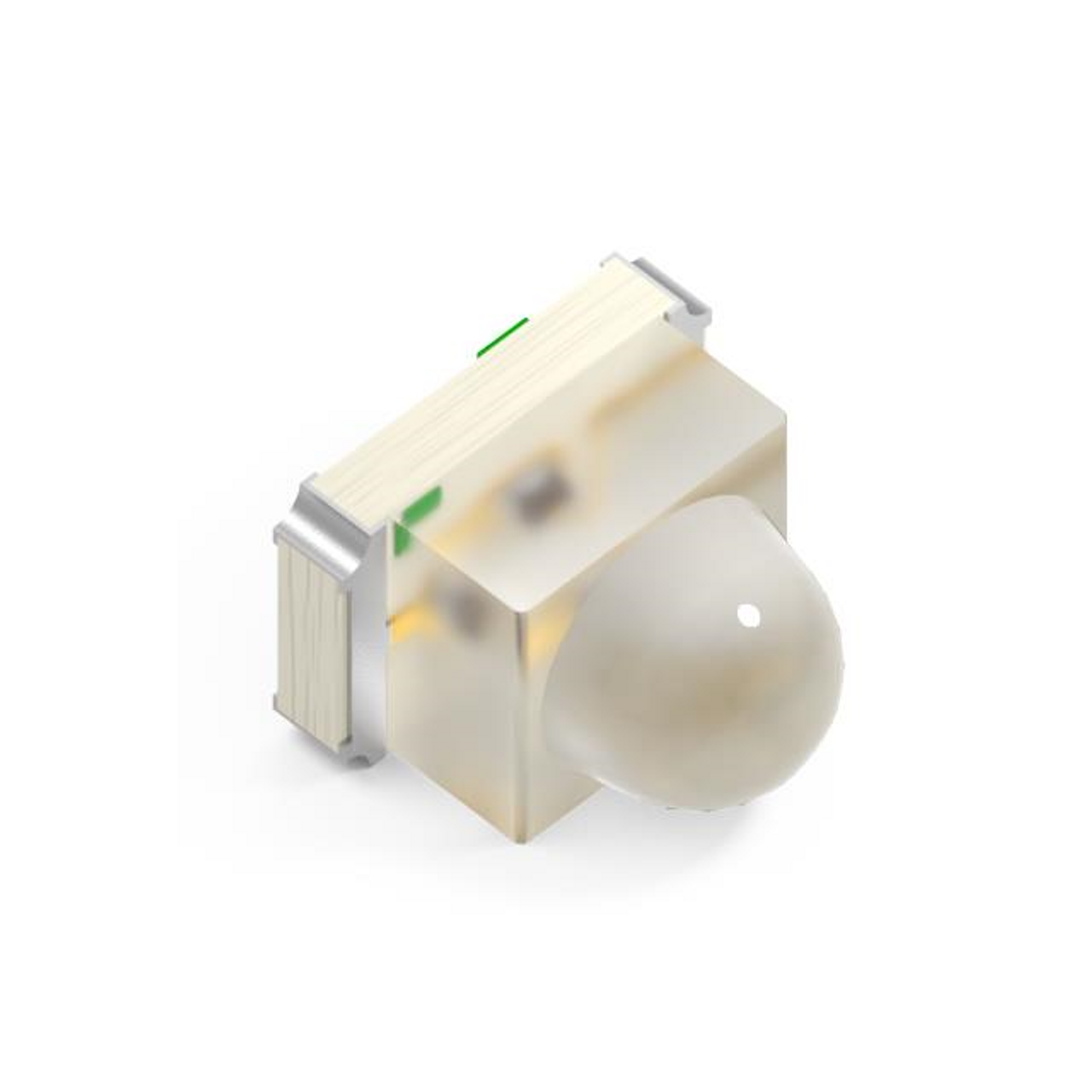

The SunLED XZM2CYK50W-2RP is a yellow surface mount LED in a 2-SMD package, with a peak wavelength of 590 nm.
It is rated 6990 mcd typical (3600 mcd minimum) at 20 mA, with a forward voltage of 2 V (2.5 V maximum).
Its water clear lens gives a 10° viewing angle.
It is halogen free, and operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Part Status | Discontinued |
| Color | Yellow |
| Configuration | Single Color |
| Peak Wavelength (nm) | 590 |
| Dominant Wavelength (nm) | 590 |
| Luminous Intensity (mcd) | 6990 |
| Luminous Intensity (Min) (mcd) | 3600 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 2 |
| Forward Voltage (Max) (V) | 2.5 |
| Viewing Angle (°) | 10 |
| Lens | Water Clear |
| Package Size | 2-SMD |
| Mounting Type | Surface Mount |
| Lens Style | Round with Domed Top |
| Lens Size | 1.70mm Dia |
| Height (Max) (mm) | 2.2 |
| Emitting Material | AlGaInP |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 75 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Features | Halogen Free |
| Moisture Sensitivity Level | 3 |
