To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XZM2CRKFBB55W-8 |
| Description | Surface Mount LED; Red / Blue; 1206; 640 / 465nm; 1295 / 278mcd; 30° |
| Datasheet | Download Datasheet |

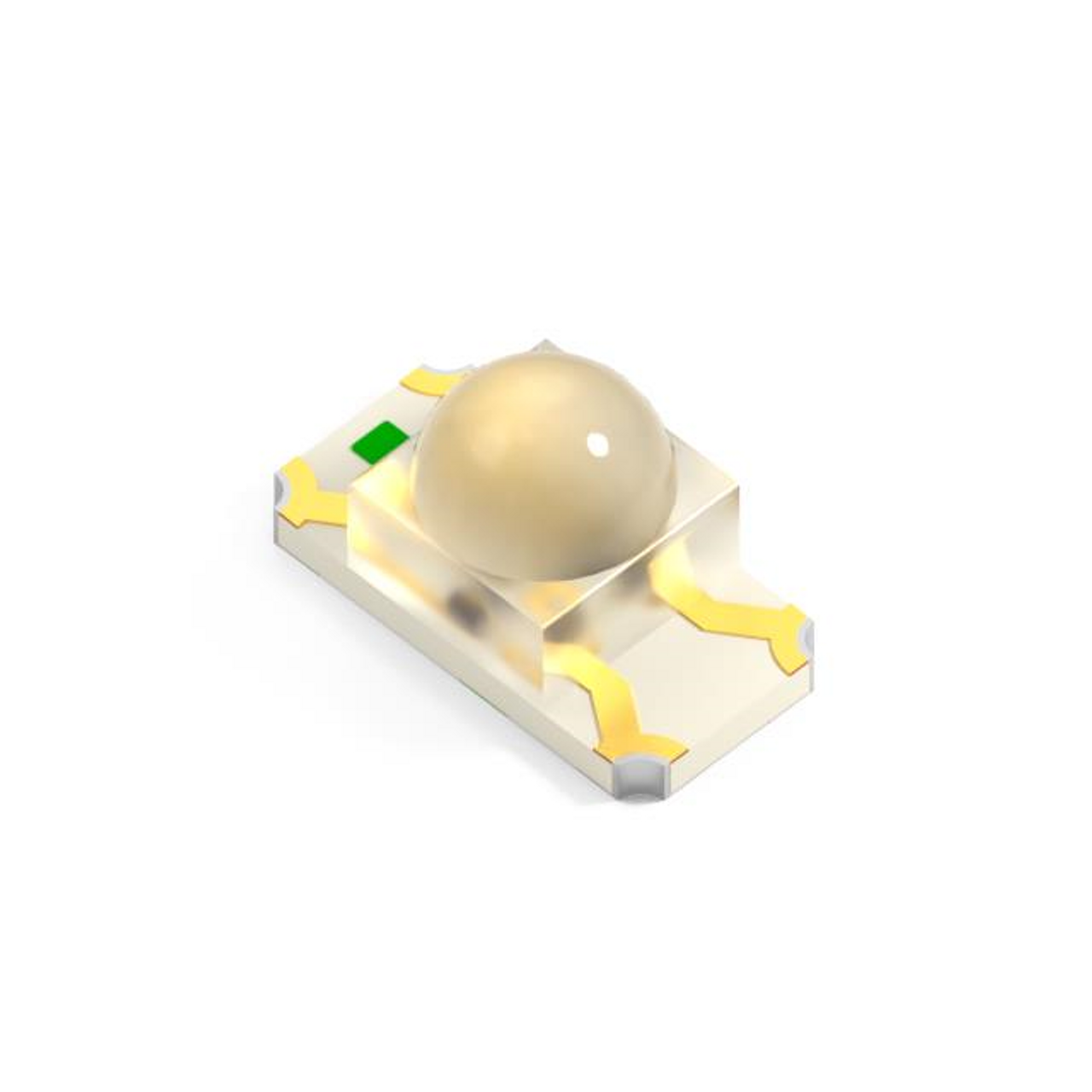

The SunLED XZM2CRKFBB55W-8 is a bi-color red / blue surface mount LED in a 3.2x1.6x1.8mm (1206) package, with a peak wavelength of 640 nm red and 465 nm blue.
It is rated 1295 mcd red and 278 mcd blue typical (700 mcd red and 120 mcd blue minimum) at 20 mA, with a forward voltage of 2.2 V red and 3.3 V blue.
Its water clear lens gives a 30° viewing angle.
It is halogen free, and operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Red / Blue |
| Configuration | Bi-Color |
| Peak Wavelength (nm) | 640 / 465 |
| Dominant Wavelength (nm) | 625 / 470 |
| Luminous Intensity (mcd) | 1295 / 278 |
| Luminous Intensity (Min) (mcd) | 700 / 120 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 2.2 / 3.3 |
| Forward Voltage (Max) (V) | 2.8 / 4 |
| Viewing Angle (°) | 30 |
| Lens | Water Clear |
| Package Size | 3.2x1.6x1.8mm (1206 Bi-Color Dome Lens LED) |
| Mounting Type | Surface Mount |
| Lens Style | Round with Domed Top |
| Lens Size | 1.60mm Dia |
| Height (Max) (mm) | 2 |
| Emitting Material | AlGaInP / InGaN |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 84 / 120 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Features | Halogen Free |
| Moisture Sensitivity Level | 3 |
