Product Description

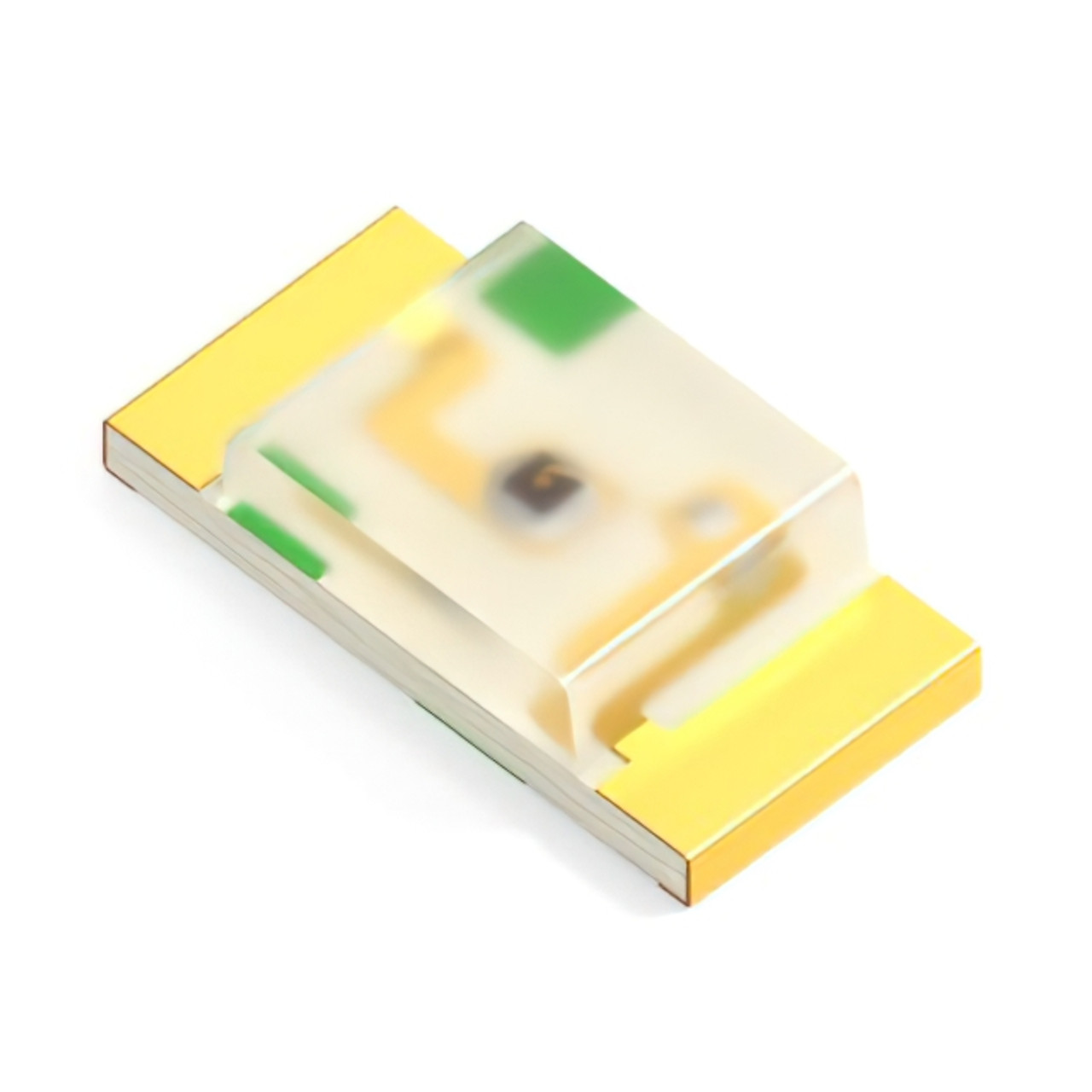

The SunLED XZM2CRK55W-1 is a red surface mount LED in a 3.2x1.6x0.75mm (1206) package, with a peak wavelength of 640 nm.
It is rated 347 mcd typical (200 mcd minimum) at 20 mA, with a forward voltage of 2.2 V (2.8 V maximum).
Its water clear lens gives a 140° viewing angle.
It operates from -40°C to +85°C.
Product Videos
Custom Field
product_attributes_title_07 Test Current (mA)
product_attributes_value_07 20
product_attributes_title_08 Forward Voltage (V)
product_attributes_value_08 2.2
product_attributes_title_09 Forward Voltage (Max) (V)
product_attributes_value_09 2.8
product_attributes_title_10 Viewing Angle (°)
product_attributes_value_10 140
product_attributes_title_11 Lens
product_attributes_value_11 Water Clear
product_attributes_title_12 Package Size
product_attributes_value_12 3.2x1.6x0.75mm (1206)
product_attributes_title_13 Mounting Type
product_attributes_value_13 Surface Mount
product_attributes_title_14 Lens Style
product_attributes_value_14 Rectangle with Flat Top
product_attributes_title_15 Lens Size
product_attributes_value_15 1.90mm x 1.60mm
product_attributes_title_16 Height (Max) (mm)
product_attributes_value_16 0.75
product_attributes_title_17 Emitting Material
product_attributes_value_17 AlGaInP
product_attributes_title_18 Forward Current (Max) (mA)
product_attributes_value_18 30
product_attributes_title_19 Power Dissipation (mW)
product_attributes_value_19 84
product_attributes_title_20 Operating Temperature (°C)
product_attributes_value_20 -40°C ~ +85°C
product_attributes_title_21 Moisture Sensitivity Level
product_attributes_value_21 3
