To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XZM2CRK53WA-8ST |
| Description | Surface Mount LED; Red; 1.6x0.8x0.65mm; 640 nm; 597mcd; 100°; Water Clear |
| Datasheet | Download Datasheet |

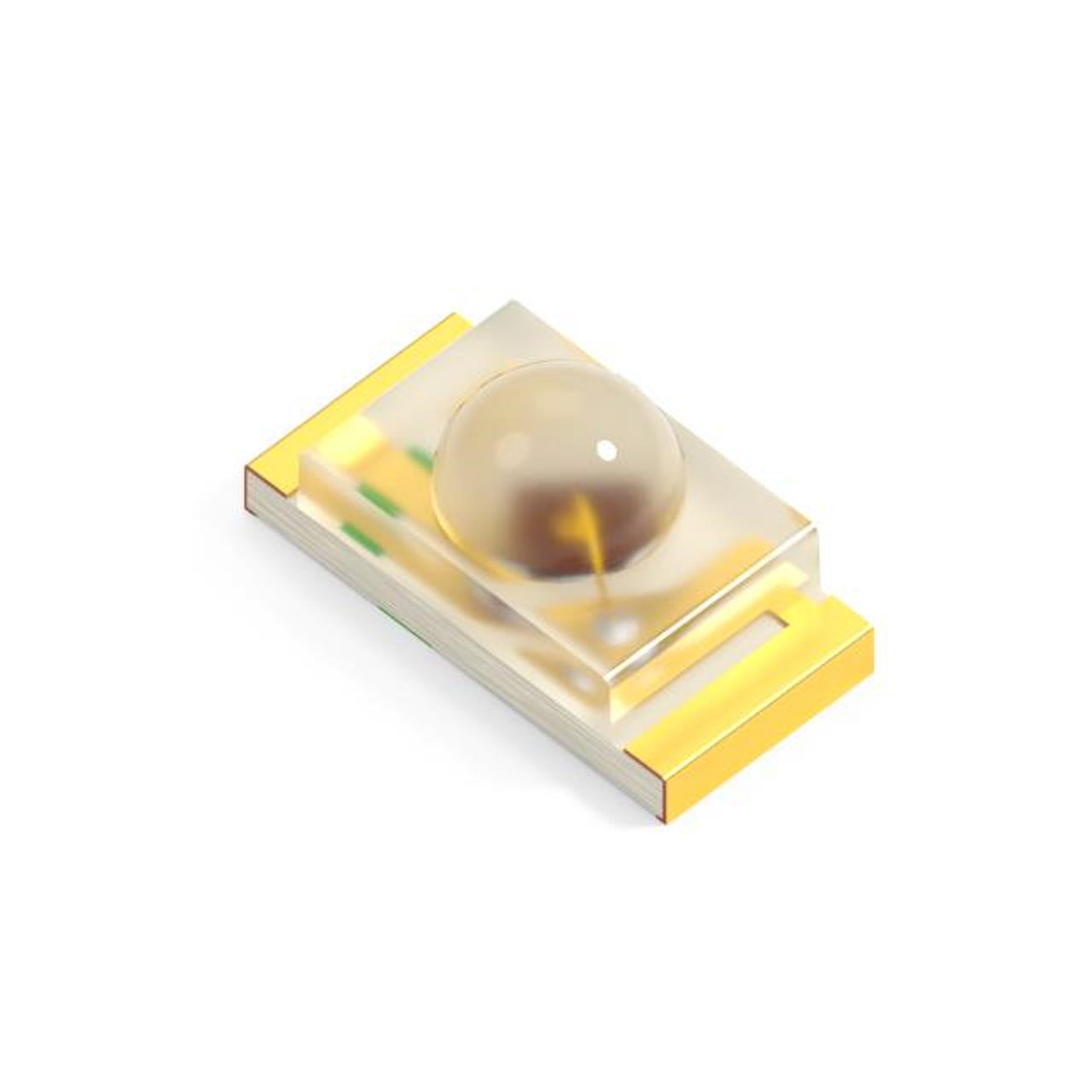

The SunLED XZM2CRK53WA-8ST is a red surface mount LED in a 1.6x0.8x0.65mm package, with a peak wavelength of 640 nm.
It is rated 597 mcd typical (300 mcd minimum) at 20 mA, with a forward voltage of 2.2 V (2.8 V maximum).
Its water clear lens gives a 100° viewing angle.
It is halogen free, and operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Red |
| Configuration | Single Color |
| Peak Wavelength (nm) | 640 |
| Dominant Wavelength (nm) | 625 |
| Luminous Intensity (mcd) | 597 |
| Luminous Intensity (Min) (mcd) | 300 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 2.2 |
| Forward Voltage (Max) (V) | 2.8 |
| Viewing Angle (°) | 100 |
| Lens | Water Clear |
| Package Size | 1.6x0.8x0.65mm (Super-Thin PixsoLED) |
| Mounting Type | Surface Mount |
| Lens Style | Round with Domed Top |
| Lens Size | 0.70mm Dia |
| Height (Max) (mm) | 0.8 |
| Emitting Material | AlGaInP |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 84 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Features | Halogen Free |
| Moisture Sensitivity Level | 3 |
