To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XZM2ACR45SRP-HTA |
| Description | Surface Mount LED; Red; 3.5x2.8mm; 640 nm; 2000 mcd; 120°; Water Clear |
| Datasheet | Download Datasheet |

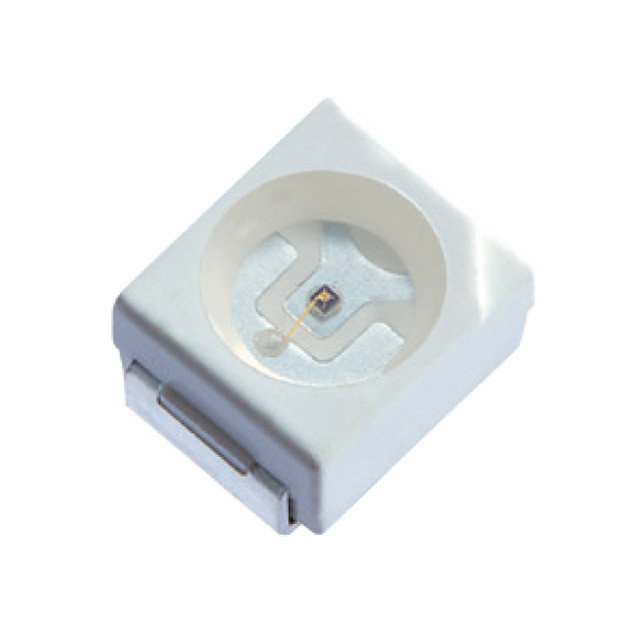

The SunLED XZM2ACR45SRP-HTA is a red surface mount LED in a 3.5x2.8mm package, with a peak wavelength of 640 nm.
It is rated 2000 mcd typical (1300 mcd minimum) at 20 mA.
Its water clear lens gives a 120° viewing angle.
It is built for high temperature and halogen free.
| Category | |
| Manufacturer | SunLED |
| Color | Red |
| Configuration | Single Color |
| Peak Wavelength (nm) | 640 |
| Luminous Intensity (mcd) | 2000 |
| Luminous Intensity (Min) (mcd) | 1300 |
| Test Current (mA) | 20 |
| Viewing Angle (°) | 120 |
| Lens | Water Clear |
| Package Size | 3.5x2.8mm (SMD PLCC2 HIGH TEMPERATURE LED) |
| Mounting Type | Surface Mount |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Height (Max) (mm) | 2.1 |
| Forward Current (Max) (mA) | 70 |
| Features | High Temperature, Halogen Free |
| Moisture Sensitivity Level | 3 |
