To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XZFBB56W |
| Description | Surface Mount LED; Blue; 1104; 465 nm; 198 mcd; 120°; Water Clear |
| Datasheet | Download Datasheet |

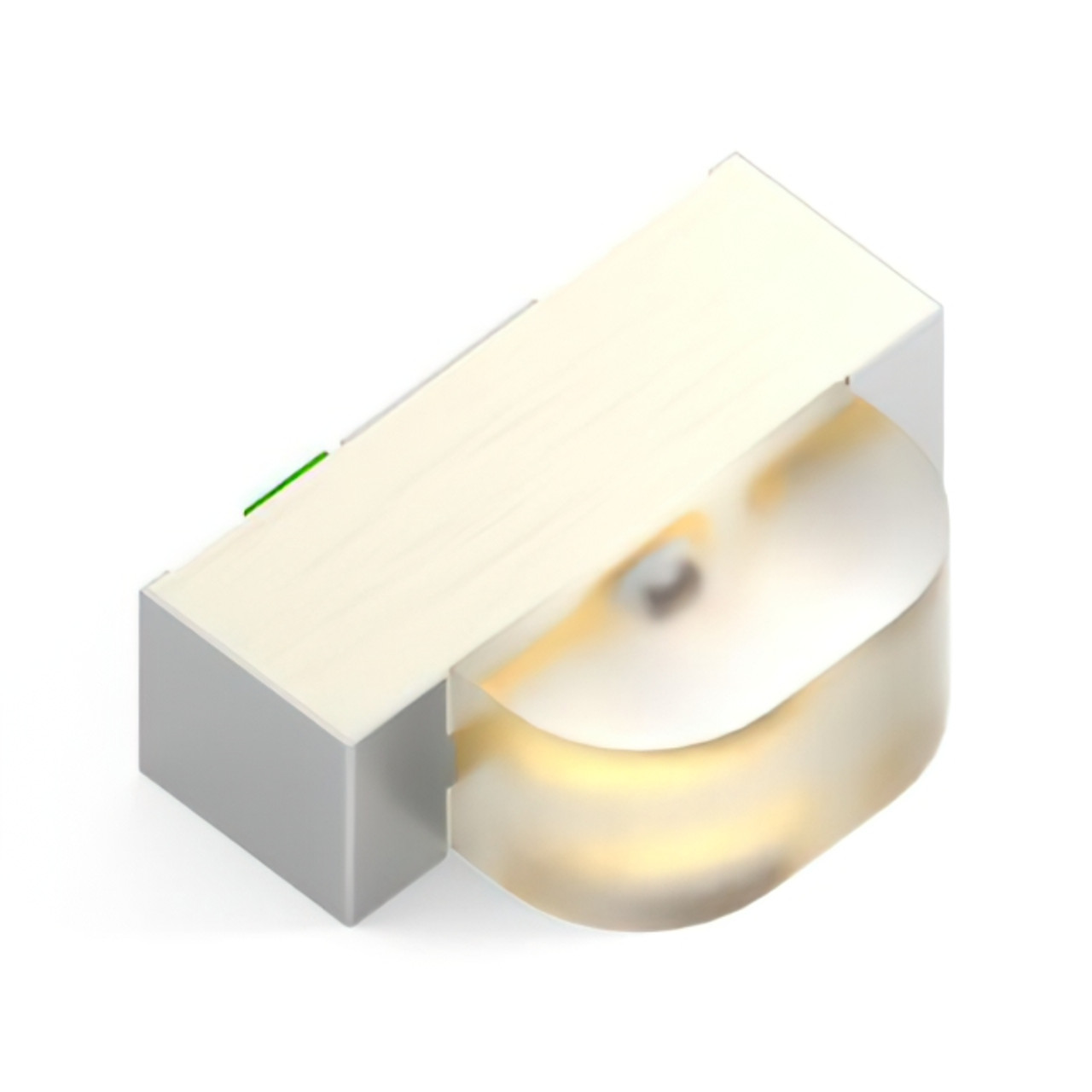

The SunLED XZFBB56W is a blue right-angle surface mount LED in a 3.0x1.0x2.0mm (1104) package, with a peak wavelength of 465 nm.
It is rated 198 mcd typical (120 mcd minimum) at 20 mA, with a forward voltage of 3.3 V (4 V maximum).
Its water clear lens gives a 120° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Blue |
| Configuration | Single Color |
| Peak Wavelength (nm) | 465 |
| Dominant Wavelength (nm) | 470 |
| Luminous Intensity (mcd) | 198 |
| Luminous Intensity (Min) (mcd) | 120 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 3.3 |
| Forward Voltage (Max) (V) | 4 |
| Viewing Angle (°) | 120 |
| Lens | Water Clear |
| Package Size | 3.0x1.0x2.0mm (1104 Right Angle LED) |
| Mounting Type | Surface Mount, Right Angle |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Height (Max) (mm) | 1 |
| Emitting Material | InGaN |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 120 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Moisture Sensitivity Level | 3 |
