To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XZFBB45W30MAV-6 |
| Description | Surface Mount LED; Blue; 3.5x2.8x3.2mm; 465 nm; 1195mcd; 60°; Water Clear |
| Datasheet | Download Datasheet |

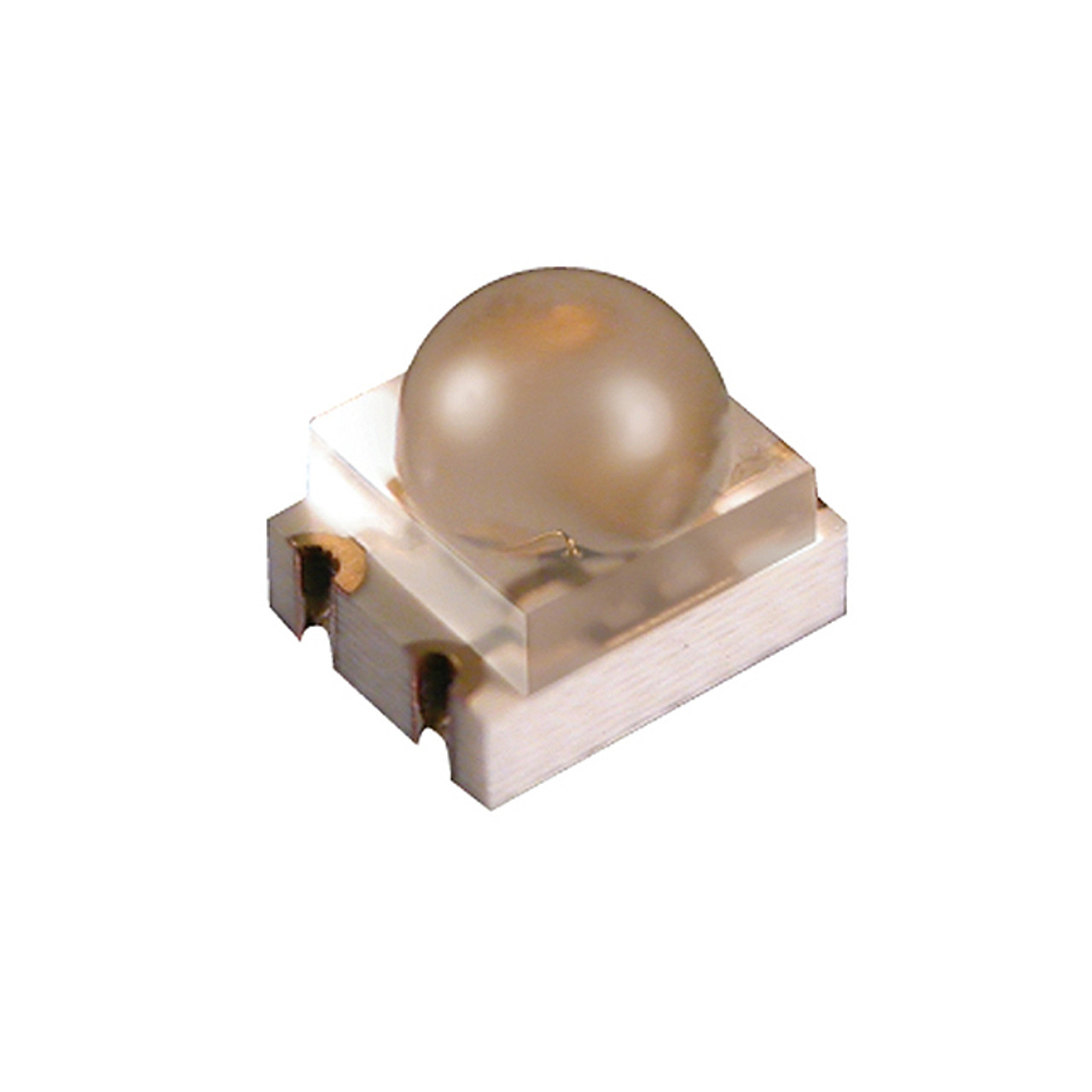

The SunLED XZFBB45W30MAV-6 is a blue surface mount LED in a 3.5x2.8x3.2mm package, with a peak wavelength of 465 nm.
It is rated 1195 mcd typical (500 mcd minimum) at 30 mA, with a forward voltage of 3.5 V (4.5 V maximum).
Its water clear lens gives a 60° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Blue |
| Configuration | Single Color |
| Peak Wavelength (nm) | 465 |
| Dominant Wavelength (nm) | 470 |
| Luminous Intensity (mcd) | 1195 |
| Luminous Intensity (Min) (mcd) | 500 |
| Test Current (mA) | 30 |
| Forward Voltage (V) | 3.5 |
| Forward Voltage (Max) (V) | 4.5 |
| Viewing Angle (°) | 60 |
| Lens | Water Clear |
| Package Size | 3.5x2.8x3.2mm (Dome Lens LED) |
| Mounting Type | Surface Mount |
| Lens Style | Round with Domed Top |
| Lens Size | 2.60mm Dia |
| Height (Max) (mm) | 3.2 |
| Emitting Material | InGaN |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 135 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Moisture Sensitivity Level | 3 |
