To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XZDGK50W-2 |
| Description | Surface Mount LED; Green; 3.0x2.0x2.8mm; 515 nm; 5790mcd; 10°; Water Clear |
| Datasheet | Download Datasheet |

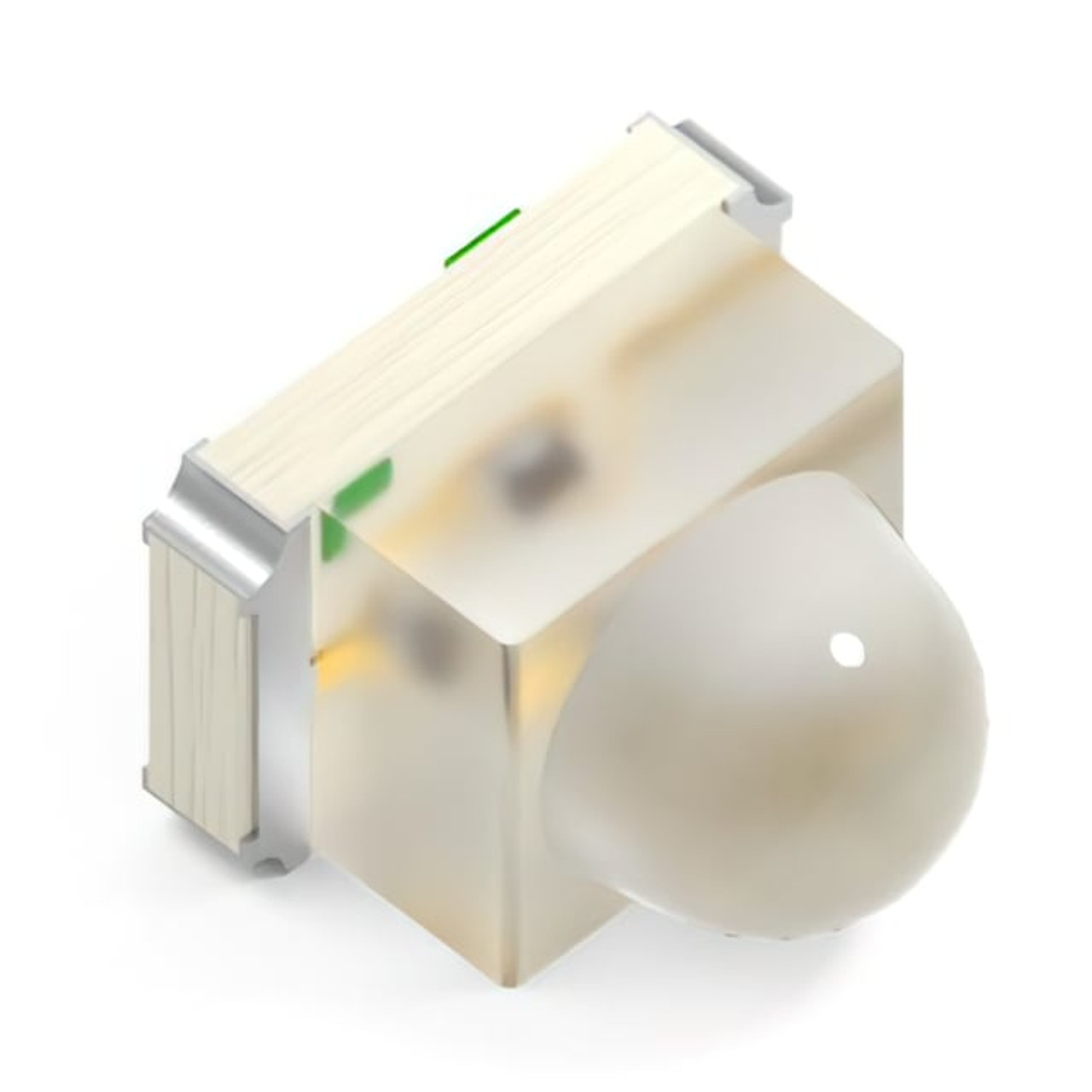

The SunLED XZDGK50W-2 is a green right-angle surface mount LED in a 3.0x2.0x2.8mm package, with a peak wavelength of 515 nm.
It is rated 5790 mcd typical (3100 mcd minimum) at 20 mA, with a forward voltage of 3.3 V (4.1 V maximum).
Its water clear lens gives a 10° viewing angle.
It is halogen free, and operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Green |
| Configuration | Single Color |
| Peak Wavelength (nm) | 515 |
| Dominant Wavelength (nm) | 525 |
| Luminous Intensity (mcd) | 5790 |
| Luminous Intensity (Min) (mcd) | 3100 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 3.3 |
| Forward Voltage (Max) (V) | 4.1 |
| Viewing Angle (°) | 10 |
| Lens | Water Clear |
| Package Size | 3.0x2.0x2.8mm (Dome Lens Right Angle LED) |
| Mounting Type | Surface Mount, Right Angle |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
| Height (Max) (mm) | 2 |
| Emitting Material | InGaN |
| Forward Current (Max) (mA) | 25 |
| Power Dissipation (mW) | 102.5 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Features | Halogen Free |
| Moisture Sensitivity Level | 3 |
