Product Description

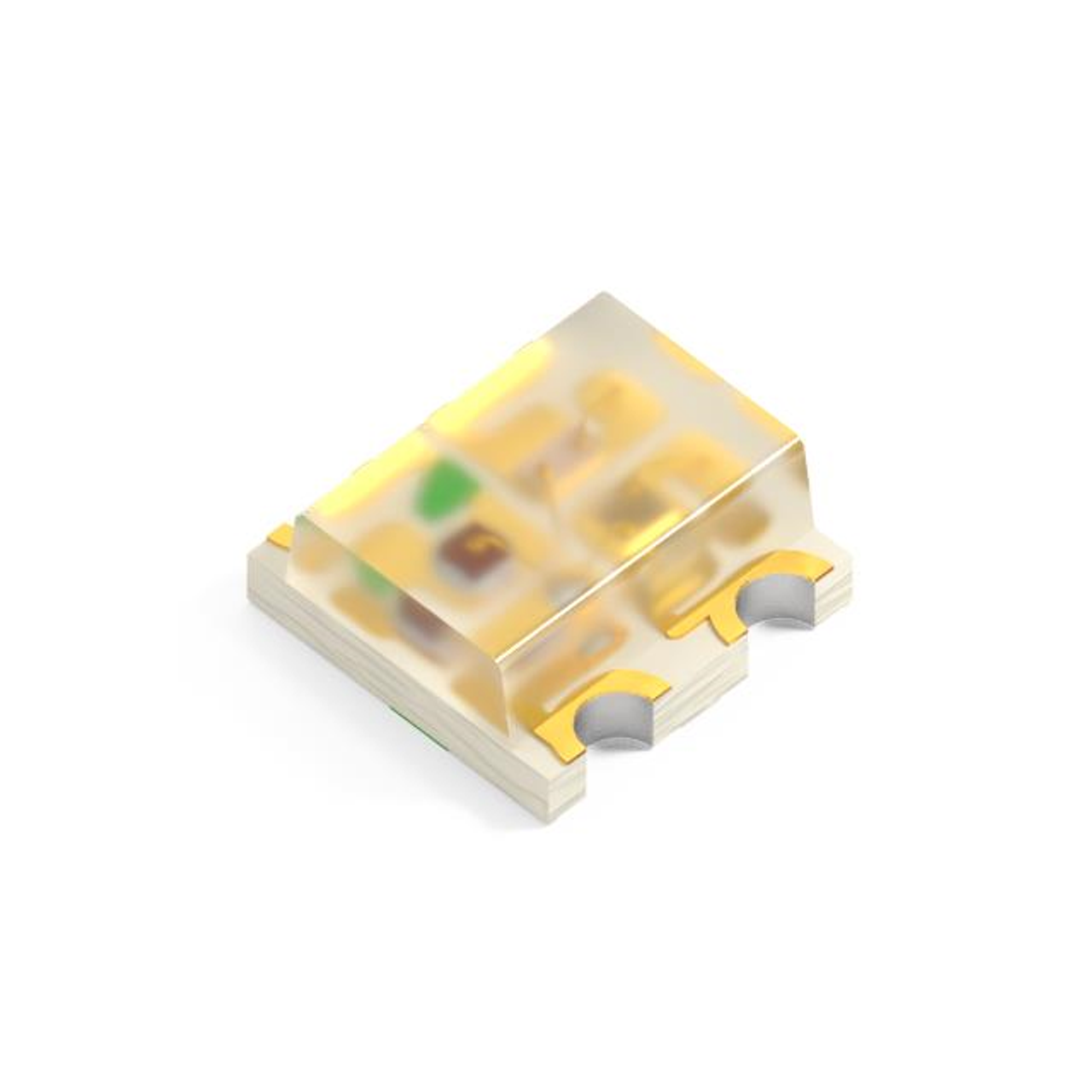

SunLED XZCMEDGCBD110W Series Surface Mount LED; 4-SMD; 621nm Red, 525nm Green, 465nm Blue; ; Clear; Colorless; Rectangle with Flat Top; 1.8V Red, 2.65V Green, 2.65V Blue
Surface Mount LED • Color: Red, Green, Blue (RGB) • Lens Color: Colorless • Lens Transparency: Clear • Lens Style: Rectangle with Flat Top • Lens Size: 1.60mm x 1.20mm • Voltage - Forward (Vf) (Typ): 1.8V Red, 2.65V Green, 2.65V Blue • Wavelength - Dominant: 621nm Red, 525nm Green, 465nm Blue • Package / Case: 4-SMD, No Lead • Size / Dimension: 1.60mm L x 1.60mm W
Product Information
| Manufacturer | SunLED |
| Product Category | LED |
| Product Sub Category | Surface Mount LED |
| Series | XZCMEDGCBD110W Series |
| Catalog Part Number | XZCMEDGCBD110W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 14mcd Red, 49mcd Green, 13mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 1.20mm |
| Voltage - Forward (Vf) (Typ) | 1.8V Red, 2.65V Green, 2.65V Blue |
| Current - Test | 2mA |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 525nm Green, 465nm Blue |
| Wavelength - Peak | 630nm Red, 515nm Green, 460nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.90mm |
